Same model may have multiple batches, images only for reference.

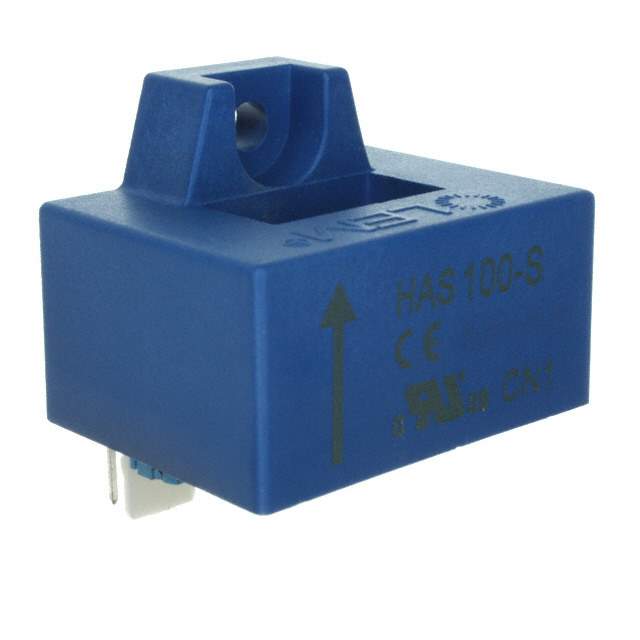

HAS 100-S Real Image
Same model may have multiple batches, images only for reference.

HAS 100-S

Part No HAS 100-S
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer LEM USA Inc.
Series HAS
Packaging Tray
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Frequency DC ~ 50kHz
Linearity ±1%
Accuracy ±1%
Operating Supply Voltage ±15V
Response Time 3μs
Maximum Supply Current 15mA
Operating Temperature Range -10°C ~ 80°C
Polarization Bidirectional
Mounting Style Through Hole
Package Module
Win Source Part Number 775593-HAS 100-S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HAS 100-S CAD Model

Description

The LEM USA Inc. 775593-HAS 100-S module is a hall effect, open loop sensor.

  • Sensor Type: Hall Effect, Open Loop
  • Polarization: Bidirectional
  • Application: AC/DC Current Measurement
  • Current Sensing: 100A
  • Linearity: ±1%
  • Accuracy: ±1%
  • Output: Ratiometric, Voltage
  • Frequency: DC ~ 50kHz
  • Response Time: 3μs
  • Supply Current (Maximum): 15mA
  • Mounting: Through Hole
  • Operating Temperature: -10°C ~ 80°C
