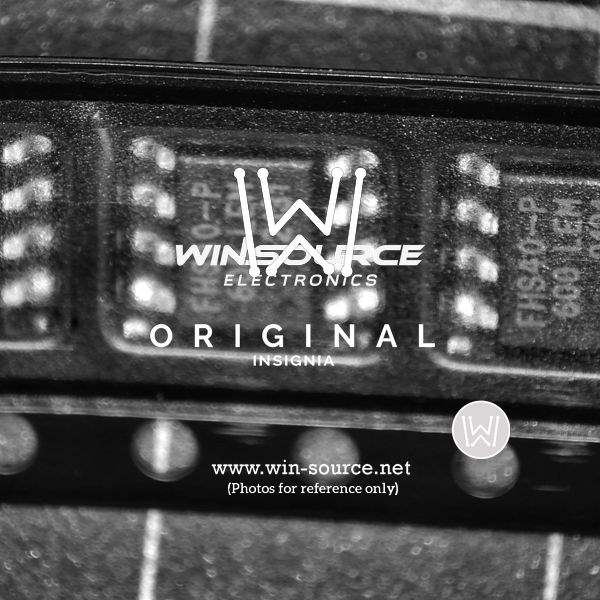

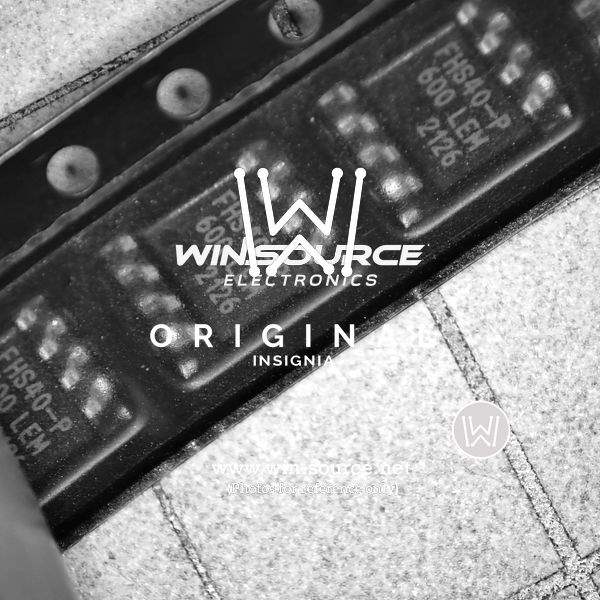

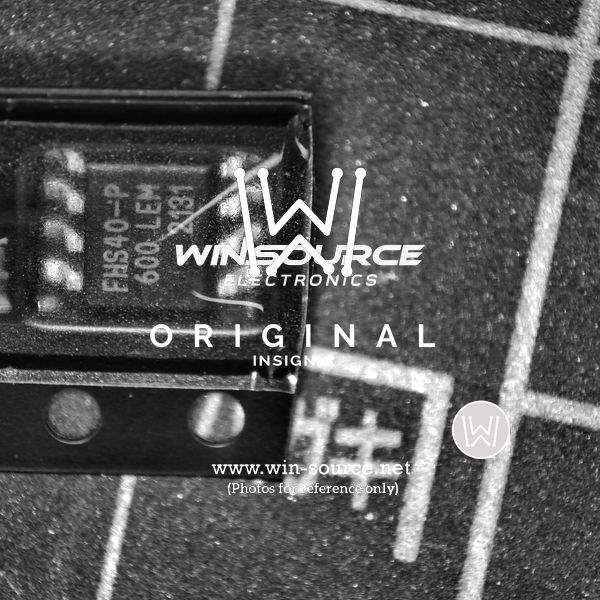

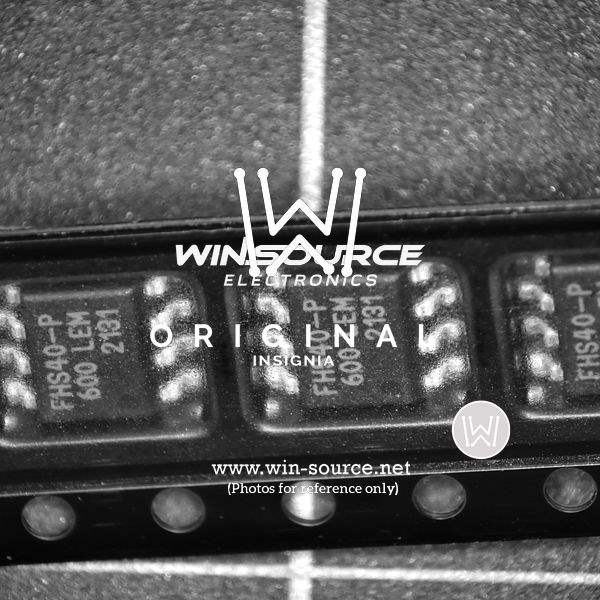

FHS 40-P/SP600 Real Image FHS 40-P/SP600 Real Image1 FHS 40-P/SP600 Real Image2 FHS 40-P/SP600 Real Image3 FHS 40-P/SP600 Real Image4
Same model may have multiple batches, images only for reference.
FHS 40-P/SP600 Real Image FHS 40-P/SP600 Real Image1 FHS 40-P/SP600 Real Image2 FHS 40-P/SP600 Real Image3 FHS 40-P/SP600 Real Image4
FHS 40-P/SP600 Real Image FHS 40-P/SP600 Real Image1 FHS 40-P/SP600 Real Image2 FHS 40-P/SP600 Real Image3 FHS 40-P/SP600 Real Image4
Same model may have multiple batches, images only for reference.

FHS 40-P/SP600

Part No FHS 40-P/SP600
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC / Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional 8-SOIC (0.154", 3.90mm Width)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr LEM USA Inc.
Series FHS
Package Tape & Reel
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 600mV/mT
Frequency 105kHz
Linearity ±0.4%
Voltage - Supply 4.75V ~ 5.5V
Response Time 3µs
Current - Supply (Max) 19mA
Temperature Range - Operating -40°C ~ 125°C
Polarization Bidirectional
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852254-FHS 40-P/SP600
Ultra Librarian 3D Model Ultra Librarian FHS 40-P/SP600 CAD Model

Description

The 852254-FHS 40-P/SP600 is an obsolete current sensor suitable for measuring AC/DC current up to 100A.

  • Sensor Type: Open-loop Hall effect sensor
  • Supply Voltage: 4.75V to 5.5V
  • Maximum Supply Current: 19mA
  • Response Time: 3μs
  • Output: Ratiometric and Voltage-based
  • Polarization: Bidirectional
  • Package: Surface mount
  • Operating Temperature: -40°C to 125°C
  • Manufacturer: LEM USA Inc.
