Same model may have multiple batches, images only for reference.

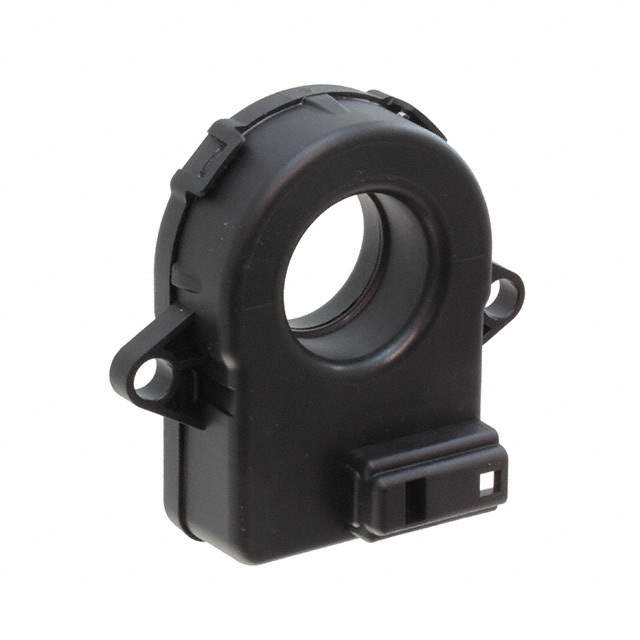

CAB500-C/SP5 Real Image
Same model may have multiple batches, images only for reference.

CAB500-C/SP5

Part No CAB500-C/SP5
Manufacturer LEM USA Inc.
Catalog Current Transducers
Description AUTOMOTIVE CURRENT TRANSDUCER / Current Sensor 500A 1 Channel Flux Gate Unidirectional Module, Single Pass Through
Datasheet
CAB500-C/SP5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Manufacturer LEM USA Inc.
Packaging Bulk
For Measuring AC/DC
Sensor Type Flux Gate
Current - Sensing 500A
Number of Channels 1
Output Ratiometric, Current
Linearity ±0.1%
Accuracy 0.5%
Voltage - Supply 8V ~ 16V
Current - Supply (Max) 40mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Unidirectional
Mounting PCB, Through Hole
Case / Package Module, Single Pass Through
RoHS Status RoHS Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Other Part Number 398-1235,CAB500-C/SP5-ND,Q11200734,90.H5.50.005.0
Standard Package 1
Win Source Part Number 1336533-CAB500-C/SP5
Ultra Librarian 3D Model Ultra Librarian CAB500-C/SP5 CAD Model

Description

The LEM USA Inc. CAB500-C/SP5 is a current sensor that falls under the category of sensors and transducers.

  • Measurement Type: AC and DC current
  • Maximum Supply Current: 40mA
  • Sensor Type: flux gate
  • Current-Sensing: up to 500A
  • Output: ratiometric and current-based
  • Polarization: unidirectional
  • Linearity: ±0.1%
  • Accuracy: 0.5%
  • Voltage Supply: 8V to 16V
  • Operating Temperature: -40°C to 85°C
  • Package: module, single pass-through
  • RoHS Compliant: Yes
  • ECCN: EAR99
