Same model may have multiple batches, images only for reference.

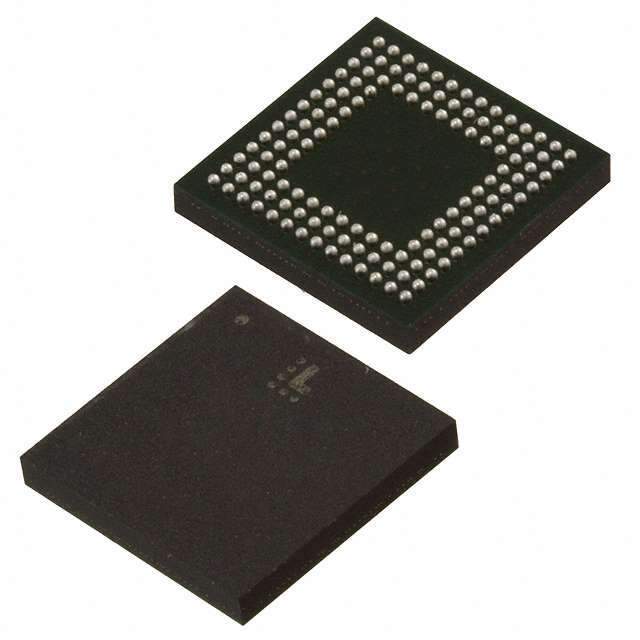

LC4256ZC-75M132C Real Image
Same model may have multiple batches, images only for reference.

LC4256ZC-75M132C

Part No LC4256ZC-75M132C
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 7.5NS 132CSBGA
Datasheet
LC4256ZC-75M132C Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Lattice Semiconductor Corporation
Packaging Tray
Status Obsolete(EOL)
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 1.7 V to 1.9 V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of I/O 96
Temperature Range - Operating 0°C to 90°C (TJ)
Mounting SMD (SMT)
Case / Package 132-CSPBGA (8x8)
Win Source Part Number 041008-LC4256ZC-75M132C
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LC4256ZC-75M132C CAD Model

Description

The Lattice Semiconductor Corporation 041008-LC4256ZC-75M132C is an in-system programmable device with 96 number of I/O.

  • I/O: 96
  • Delay Time: tpd(1) max of 7.5ns
  • Voltage Supply: 1.7 V to 1.9 V
  • Logic elements/blocks: 16
  • Macrocells: 256
  • Mounting: surface mountable
  • Package: 132-CSPBGA (8x8)
  • Alternative parts: XC2C256-7CP132C, LC4256ZC-75MN132I, LC4256ZC-75M132I, and LC4256ZC-75M132C
  • Category: integrated circuits
  • Status: obsolete (EOL) in the open market
  • Supply and demand status: limited
