Same model may have multiple batches, images only for reference.

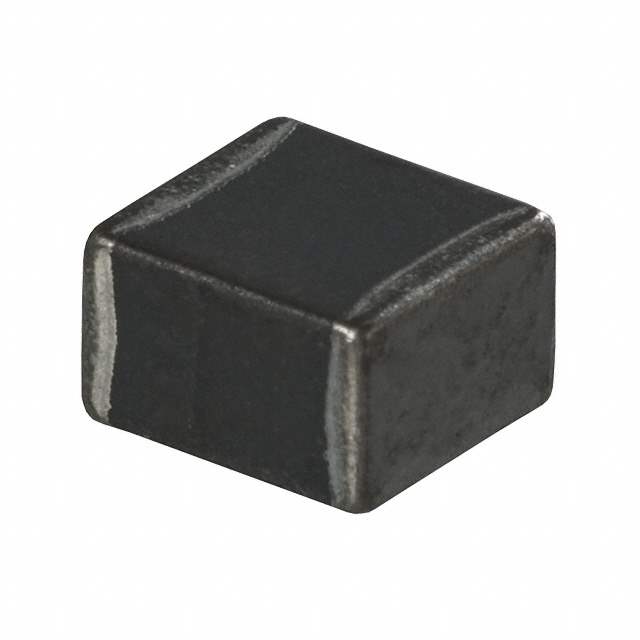

HI2220P251R-00 Real Image
Same model may have multiple batches, images only for reference.

HI2220P251R-00

Part No HI2220P251R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 250 OHM 2220 1LN
Datasheet
HI2220P251R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 250 Ohm @ 100MHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 15 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.081" (2.05mm)
Dimension 0.220" L x 0.200" W (5.59mm x 5.08mm)
Win Source Part Number 120537-HI2220P251R-00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HI2220P251R-00 CAD Model

Description

The Laird-Signal Integrity Products 120537-HI2220P251R-00 is a power and signal line filter that has a maximum current rating of 4A. It has a DC resistance of 15 mOhm and an impedance of 250 Ohm at 100MHz. The filter is SMD (SMT) mounted and has a height of 0.081" (2.05mm). The product is obsolete (EOL) and has a temperature range of -40°C to 125°C. The product dimensions are 0.220" L x 0.200" W (5.59mm x 5.08mm). The supply and demand status is balanced.
