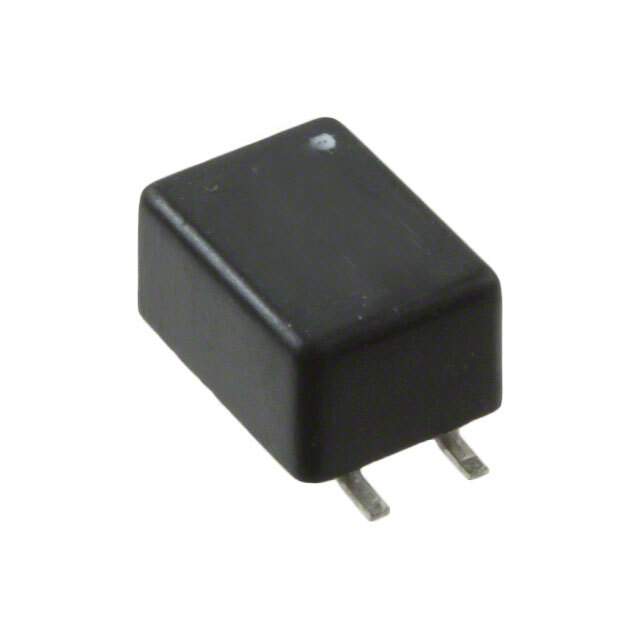

CM2824E702R-10 Real Image
Same model may have multiple batches, images only for reference.

CM2824E702R-10

Part No CM2824E702R-10
Manufacturer Laird-Signal Integrity Products
Catalog Common Mode Chokes
Description CMC 700MA 2LN 800 OHM SMD
Datasheet
CM2824E702R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 9 Weeks
Features 2 Line Common Mode Choke Surface Mount 800 Ohms @ 100 MHz 700mA DCR 260mOhm
Manufacturer Laird-Signal Integrity Products
Series CM
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 Flat Lead
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number 240-2575-1, 240-2575-2, CM2824E702R10, 240-2575-6
Quantity per package 1500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915572-CM2824E702R-10
Ultra Librarian 3D Model Ultra Librarian CM2824E702R-10 CAD Model

Description

The Laird-Signal Integrity Products 915572-CM2824E702R-10 is a surface mount common mode choke that has a resistance of 800 Ohms @ 100 MHz and a DCR of 260mOhm.

  • Manufacturer: Laird-Signal Integrity Products
  • Mounting: Surface Mount
  • Resistance: 800 Ohms @ 100 MHz
  • DCR: 260mOhm
  • Current Rating: 700mA
  • Packaging: reel - TR
  • Package: horizontal, 4 flat lead and a vertical, 8 flat lead package
  • Supply and Demand Status: balanced
  • Quantity per Package: 1500
  • Estimated Production Lead Time: 9 weeks
  • REACH: REACH unaffected
  • ECCN: EAR99
