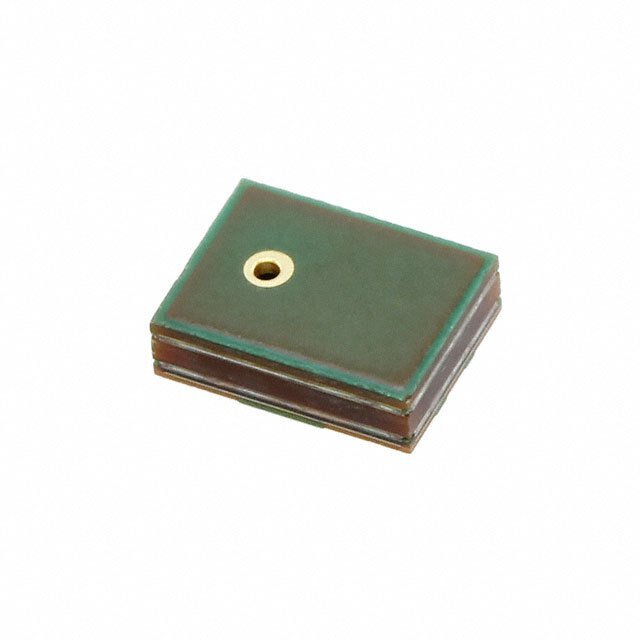

SPH0642HT5H-1 Knowles
Same model may have multiple batches, images only for reference.

SPH0642HT5H-1

Part No SPH0642HT5H-1
Manufacturer Knowles
Catalog Microphones
Description MIC MEMS ANALOG OMNI -38DB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Knowles
Packaging Reel
Part Status Obsolete (End Of Life)
Type MEMS (Silicon)
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz ~ 10kHz
Sensitivity -38dB ±1dB at 94dB SPL
S/N Ratio 65dB
Impedance 500 Ohms
Voltage Range 1.5V ~ 3.6V
Current - Supply 185μA
Port Location Top
Termination Solder Pads
Dimension 0.138" L x 0.104" W (3.50mm x 2.65mm)
Height (Maximum) 0.043" (1.10mm)
Shape Rectangular
Manufacturer Pack Quantity 5,900
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802569-SPH0642HT5H-1
Ultra Librarian 3D Model Ultra Librarian SPH0642HT5H-1 CAD Model

Description

The Knowles 802569-SPH0642HT5H-1 is a MEMS (Silicon) component with a rectangular shape and a top port location.

  • Shape: Rectangular
  • Port Location: Top
  • Dimensions: 0.138" L x 0.104" W (3.50mm x 2.65mm)
  • Maximum Height: 0.043" (1.10mm)
  • Impedance: 500 Ohms
  • Frequency Range: 100Hz ~ 10kHz
  • Output Type: Analog
  • Directivity: Omnidirectional
  • Sensitivity: -38dB ±1dB @ 94dB SPL
  • S/N Ratio: 65dB
  • Voltage Range: 1.5V ~ 3.6V
  • Supply Current: 185μA
  • Obsolete: Yes (End Of Life)
  • Popularity: High
  • Manufacturer Pack Quantity: 5,900
  • MSL Level: 1 (Unlimited)
