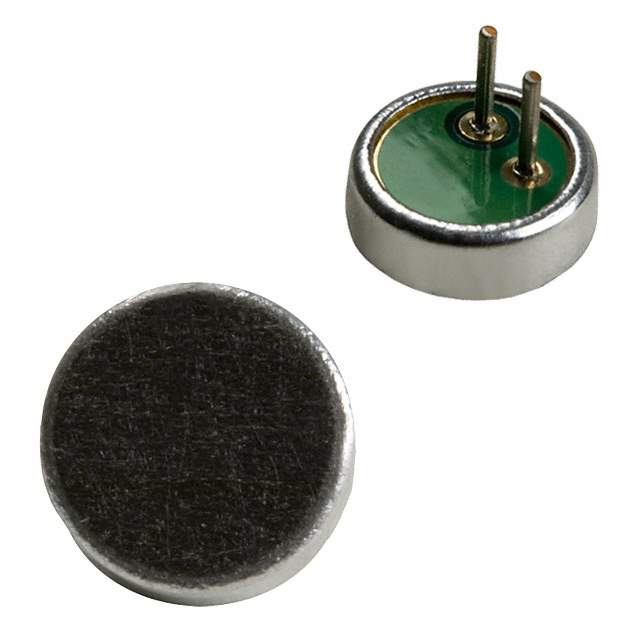

MB6022APC-0 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Audio Products
Manufacturer Knowles
Packaging Bulk
Status Obsolete(EOL)
Type Electret Condenser
Output Type Analog
Direction Omnidirectional
Frequency Range 100Hz to 10kHz
Sensitivity -40dB ±2dB @ 94dB SPL
S/N Ratio 60dB
Impedance 2.2 kOhm
Voltage Rating 2V
Voltage Range 2 to 10V
Operating Supply Current 500μA
Port Location Top
Termination PC Pins
Height (Max) 0.094" (2.40mm)
Shape Circular
Win Source Part Number 127377-MB6022APC-0
Ultra Librarian 3D Model Ultra Librarian MB6022APC-0 CAD Model

Description

The Knowles electret condenser component with Win Source Part Number 127377-MB6022APC-0 is an obsolete audio product with a circular shape and top port location.

  • This component has a height of 0.094 inches and an impedance of 2.2 kOhm.
  • The frequency range of this component is from 100Hz to 10kHz, and it has a sensitivity of -40dB ± 2dB @ 94dB SPL.
  • The S/N ratio of this component is 60dB, and the voltage range is from 2V to 10V.
  • The packaging of this component is in bulk form, and the termination is PC pins.
