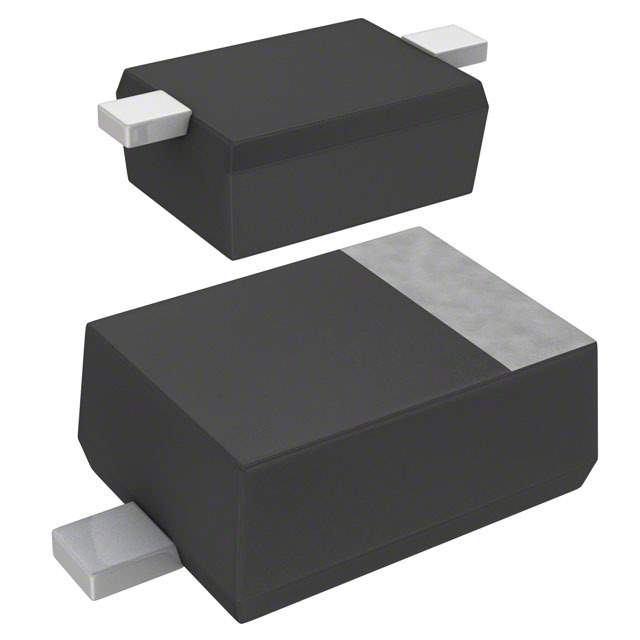

DB2J20600L Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panasonic Electronic Components
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Maximum) at If 450mV at 1A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 6ns
Current - Reverse Leakage at Vr 100μA at 20V
Capacitance at Vr, F 20pF at 10V, 1MHz
Mounting Style SMD
Manufacturer Package SC-90, SOD-323F
Supplier Device Package SMini2-F5-B
Operating Temperature - Junction 150°C (Maximum)
Part Number Series DB2J206
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 813420-DB2J20600L
Ultra Librarian 3D Model Ultra Librarian DB2J20600L CAD Model

Description

The Panasonic Electronic Components DB2J20600L is a fast recovery Schottky diode with a current rating of 1A and a maximum reverse voltage of 20V. It has a low popularity and limited supply and demand status.

  • Current Rating: 1A
  • Maximum Reverse Voltage: 20V
  • Package: SC-90, SOD-323F
  • Forward Voltage: 450mV @ 1A
  • Reverse Leakage Current: 100μA @ 20V
  • Capacitance: 20pF @ 10V, 1MHz
