Same model may have multiple batches, images only for reference.

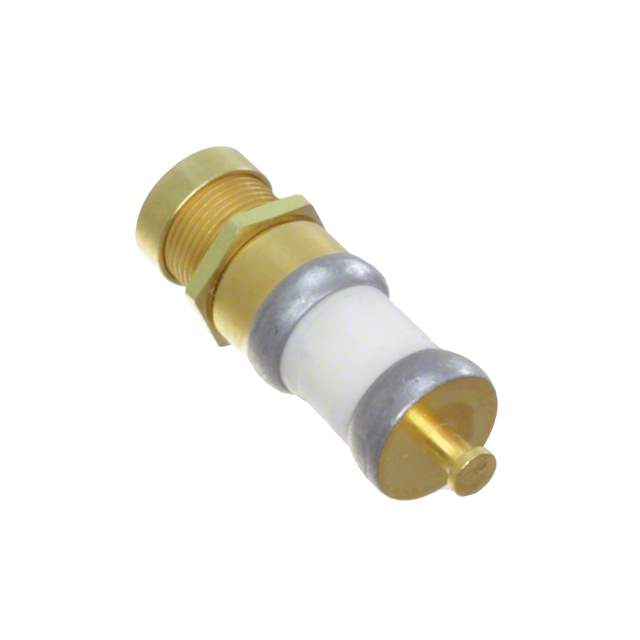

5502 Real Image
Same model may have multiple batches, images only for reference.

5502

Part No 5502
Manufacturer Knowles Johanson Manufacturing
Catalog Trimmers, Variable Capacitors
Description CAP TRIMMER 1-20PF 250V PNL MNT
Datasheet
5502 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Trimmers, Variable Capacitors
Mfr Knowles Johanson Manufacturing
Package Bulk
Product Status Active
Capacitance Range 1 ~ 20pF
Adjustment Type Top
Voltage - Rated 250 V
Dielectric Material Air
Q @ Freq 1500 @ 100MHz
Size / Dimension 0.280" Dia (7.11mm)
Temperature Range - Operating -65°C ~ 125°C
Mounting Type Panel Mount
Features Sealed
Standard Package 10 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.8070
California Prop 65 Warning Information
Win Source Part Number 856551-5502
Ultra Librarian 3D Model Ultra Librarian 5502 CAD Model

Description

The Capacitors - Trimmers, Variable Capacitors is a high-quality electronic component used for capacitance adjustment.

  • Package: Bulk
  • Standard Package: 10 pieces
  • Size/Dimension: 0.280 inches (7.11mm) diameter
  • Mounting Type: Panel Mount
  • Voltage Rating: 250V
  • Capacitance: 1 ~ 20pF
  • Manufacturer: Knowles Johanson Manufacturing
  • Dielectric Material: Air
  • Q Value: 1500 @ 100MHz
  • Temperature Range: -65°C to 125°C
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8533.40.8070
  • Product Status: Active
  • California Prop 65: Compliant
