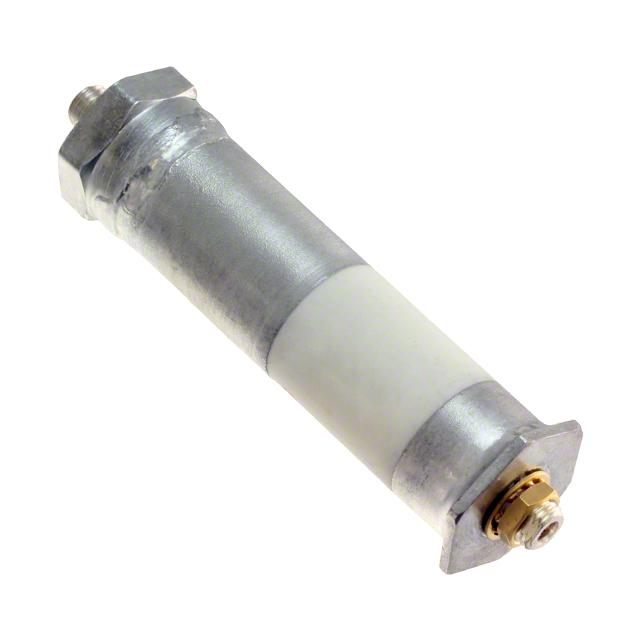

SGNMNC3253 Sprague-Goodman
Same model may have multiple batches, images only for reference.

SGNMNC3253

Part No SGNMNC3253
Manufacturer Sprague-Goodman
Catalog Trimmers, Variable Capacitors
Description CAP TRIM 5-25PF 3000V CHAS MNT / 5 ~ 25pF Trimmer Capacitor 3000 V Chassis Mount
Datasheet
SGNMNC3253 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Trimmers, Variable Capacitors
Mfr Sprague-Goodman
Series SGNM-Series 3
Package Bulk
Product Status Obsolete
Capacitance Range 5 ~ 25pF
Voltage - Rated 3000 V
Dielectric Material Ceramic
Q @ Freq 1200 @ 25MHz
Size / Dimension 0.710" Dia (18.03mm)
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Chassis Mount
Features Non-Magnetic, Sealed
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.30.0090
Win Source Part Number 489197-SGNMNC3253
Ultra Librarian 3D Model Ultra Librarian SGNMNC3253 CAD Model

Description

The Sprague-Goodman SGNMNC3253 is a variable capacitor designed for use in electronic circuits.

  • Manufacturer: Sprague-Goodman
  • Product Name: SGNMNC3253
  • Series: SGNM-Series 3
  • Capacitance Range: 5 to 25 pF
  • Package: Bulk
  • Standard Package: 1 piece
  • Features: Non-Magnetic, Sealed
  • Diameter: 0.710"
  • Voltage Rating: 3000 V
  • Q Value: 1200 @ 25 MHz
  • Dielectric Material: Ceramic
  • Mounting: Chassis Mount
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • MSL: 1
  • HTSUS Code: 8532.30.0090
