Same model may have multiple batches, images only for reference.

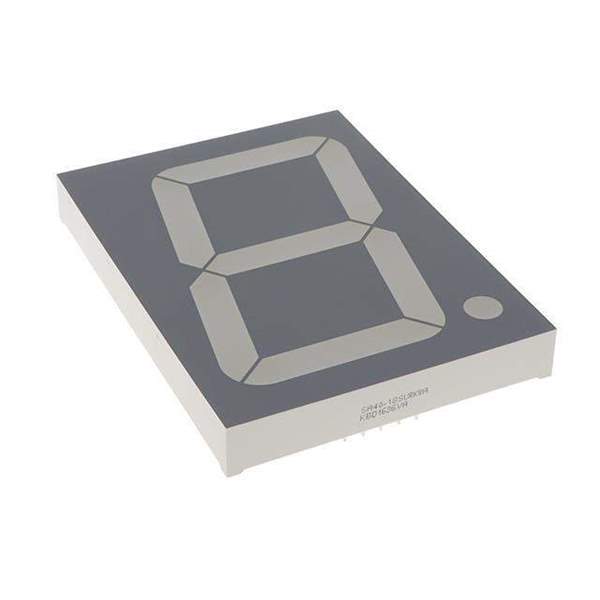

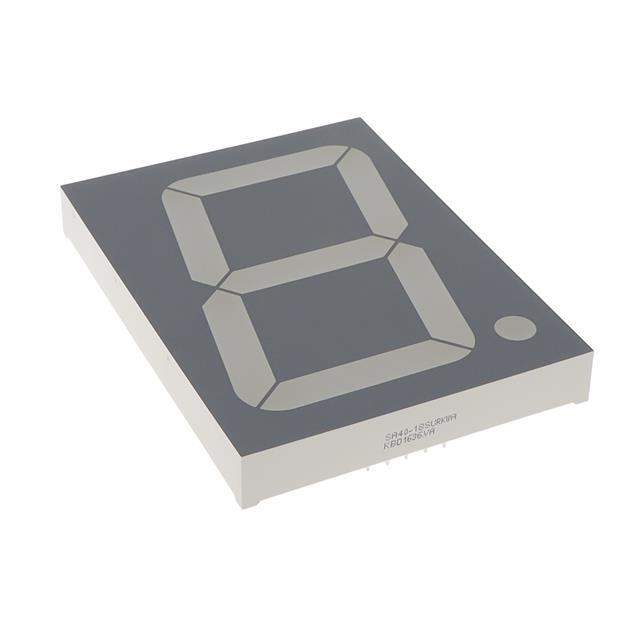

SA40-18SURKWA Real Image
Same model may have multiple batches, images only for reference.

SA40-18SURKWA

Part No SA40-18SURKWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 3.98" SGL RED 10DIP / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 3.9V 20mA 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm) 10-DIP (4.210", 107.00mm)
Datasheet
SA40-18SURKWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm)
Digit/Alpha Size 3.98" (101.20mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 3.9V
Current - Test 20mA
Millicandela Rating 250mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 150mW
Package / Case 10-DIP (4.210", 107.00mm)
Base Product Number SA40-18
Standard Package 6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242572-SA40-18SURKWA
Ultra Librarian 3D Model Ultra Librarian SA40-18SURKWA CAD Model

Description

The SA40-18SURKWA is a red 7-segment LED display module from Kingbright.

  • Digit/Alpha Size: 3.98 inches (101.20mm)
  • Common Anode: Configuration
  • Forward Voltage: 3.9V
  • Current: 20mA
  • Peak Wavelength: 645nm
  • Millicandela Rating: 250mcd
  • Package/Case: 10-DIP (4.210 inches, 107.00mm)
  • Dimensions: 4.803 inches H x 3.543 inches W x 0.591 inches D (122.00mm x 90.00mm x 15.00mm)
