Same model may have multiple batches, images only for reference.

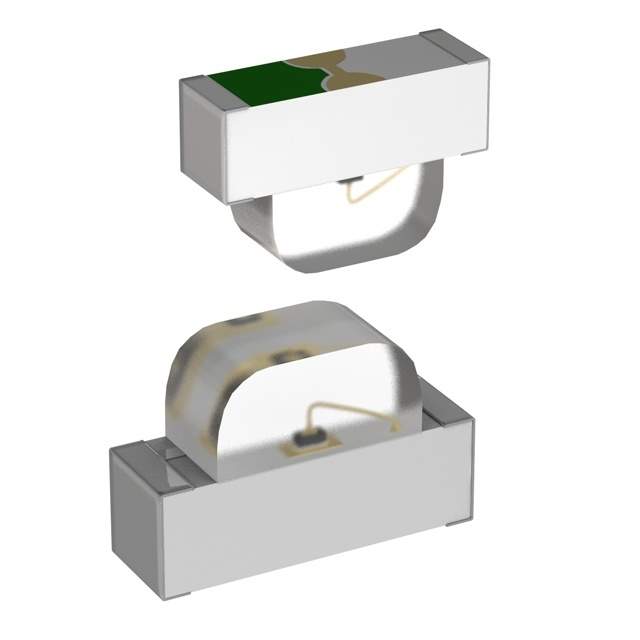

APA3010SRCPRV-GX Real Image
Same model may have multiple batches, images only for reference.

APA3010SRCPRV-GX

Part No APA3010SRCPRV-GX
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED RED CLEAR SMD R/A / Red 640nm LED Indication - Discrete 1.85V 2-SMD, No Lead
Datasheet
APA3010SRCPRV-GX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Product Status Obsolete
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 30mcd
Lens Style Rectangle with Domed Top
Lens Size 2.00mm x 1.00mm
Voltage - Forward (Vf) (Typ) 1.85V
Current - Test 20mA
Viewing Angle 120°
Mounting Type Surface Mount, Right Angle
Wavelength - Dominant 640nm
Wavelength - Peak 655nm
Package / Case 2-SMD, No Lead
Supplier Device Package SMD
Dimension 3.00mm L x 2.00mm W
Height (Max) 1.00mm
Base Product Number APA3010
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1577-1,754-1577-2,APA3010SRCPRVGX,754-1577-6
Standard Package 2,000
Win Source Part Number 983806-APA3010SRCPRV-GX
Ultra Librarian 3D Model Ultra Librarian APA3010SRCPRV-GX CAD Model

Description

The Kingbright electronic component with the Win Source Part Number 983806-APA3010SRCPRV-GX is an obsolete product with a category of Optoelectronics>LED Indication - Discrete.

  • Voltage forward (Vf) (Typ): 1.85V
  • Current test: 20mA
  • Wavelength - dominant: 640nm
  • Wavelength - peak: 655nm
  • Lens style: Rectangle with domed top
  • Lens size: 2.00mm x 1.00mm
  • Supplier device package: SMD
  • Dimension: 3.00mm L x 2.00mm W
