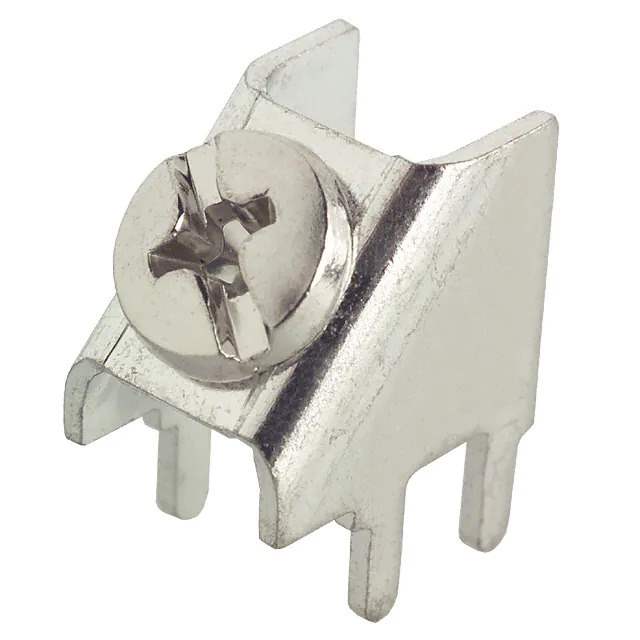

7702 Real Image
Same model may have multiple batches, images only for reference.

7702

Part No 7702
Manufacturer Keystone Electronics
Catalog Terminals
Description TERM SCREW 6-32 4 PIN PCB
Datasheet
7702 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Screw Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type Screw Terminal, Power Tap
Screw Size 6-32
Termination Solder
Current Rating (Amps) 15 A
Number of Pins 4
Mounting Type Through Hole, 45° Angle
Contact Finish Tin
Contact Material Brass
Screw Material Brass
Screw Finish Nickel
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 550974-7702
Ultra Librarian 3D Model Ultra Librarian 7702 CAD Model

Description

The 550974-7702 is a screw terminal power tap connector designed for through-hole mounting @ a 45° angle.

  • Termination: Solder termination
  • Contact Finish: Tin contact finish
  • Conductivity and Resistance: Ensuring excellent conductivity and corrosion resistance
  • Material: Made of brass
  • Durability: Known for its high strength and durability
  • Pin Count: Four pins
  • Current Rating: Current rating of up to 15 amps
  • Manufacturer: Keystone Electronics
  • Status: Active product
  • Common Use: Commonly used in power distribution systems, industrial equipment, and automotive applications
