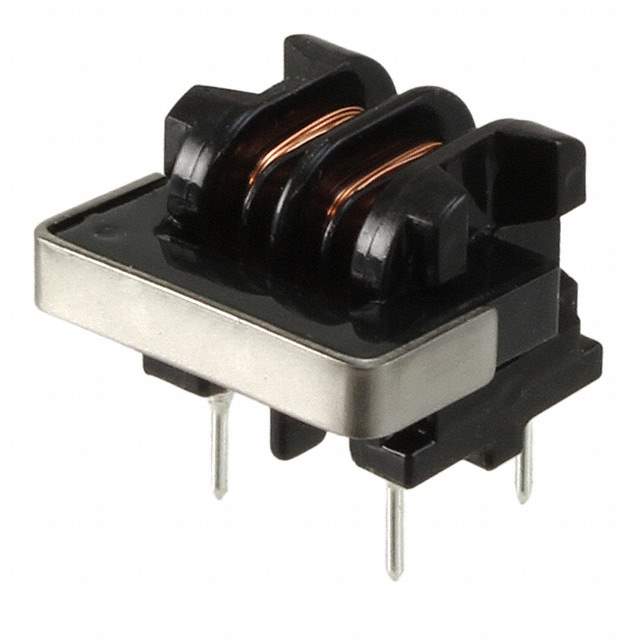

SU9HF-06030 Real Image
Same model may have multiple batches, images only for reference.

SU9HF-06030

Part No SU9HF-06030
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9HF
Other Names 399-10716
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276503-SU9HF-06030
Ultra Librarian 3D Model Ultra Librarian SU9HF-06030 CAD Model

Description

The SU9HF-06030 is a common mode choke filter from KEMET.

  • Series: SU
  • Number of Lines: 2
  • Mounting Type: Through Hole
  • Voltage Rating: 250V
  • Operating Temperature: -25°C to 120°C
  • Win Source Part Number: 1276503
  • Packaging: Bulk
  • REACH Regulations: Unaffected
