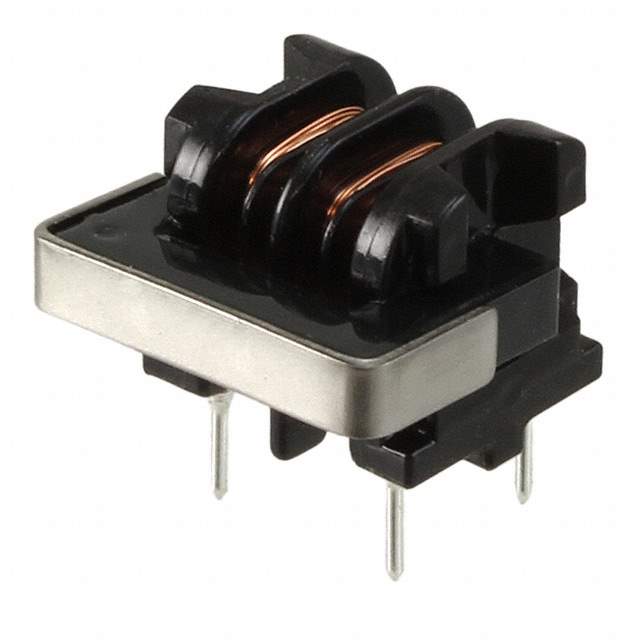

SU9HF-01250 Real Image
Same model may have multiple batches, images only for reference.

SU9HF-01250

Part No SU9HF-01250
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 25 mH @ 1 kHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 9Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.472" (12.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9HF
Other Names 399-SU9HF-01250,UALSU9HF012500
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276464-SU9HF-01250
Ultra Librarian 3D Model Ultra Librarian SU9HF-01250 CAD Model

Description

The SU9HF-01250 is a common mode choke that is designed for use in power line filters.

  • Manufacturer: Kemet
  • Filter Type: Common Mode Choke
  • Application: Power Line Filters
  • Voltage Rating: 250V
  • Maximum Current Rating: 100mA
  • Height: 0.472 inches
  • Length: 0.669 inches
  • Width: 0.610 inches
  • Number of Lines: Two
  • Inductance: 25 mH @ 1 kHz
  • DC Resistance: 9 Ohm max
  • Mounting: Through-Hole
  • Package Type: Vertical, 4 PC pin
  • Temperature Range: -25°C to 120°C
  • Packaging: Tray
  • Standard Package: 1,000 pieces
  • REACH: Unaffected
  • ECCN: EAR99
  • Other Names: 399-SU9HF-01250 and UALSU9HF012500
