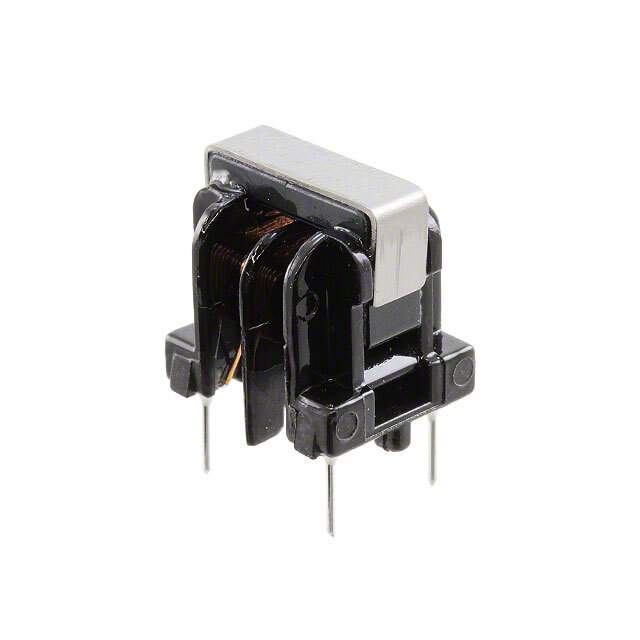

SU10VD-20010 Real Image
Same model may have multiple batches, images only for reference.

SU10VD-20010

Part No SU10VD-20010
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 µH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.709" L x 0.630" W (18.00mm x 16.00mm)
Height (Max) 0.787" (20.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU10VD
Other Names 399-10738,UALSU10VD20010
Standard Package 700
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276496-SU10VD-20010
Ultra Librarian 3D Model Ultra Librarian SU10VD-20010 CAD Model

Description

The SU series common mode choke is a power line filter type electronic component with a voltage rating of 250V AC and a current rating of 2A.

  • Voltage Rating: 250V AC
  • Current Rating: 2A
  • Inductance @ frequency: 10 μH @ 1 kHz
  • DC resistance (DCR): 100mOhm @ max
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Packaging: Bulk
  • Height: 0.787 inches (20.00mm)
  • Dimension: 0.709 inches L x 0.630 inches W (18.00mm x 16.00mm)
  • Operating Temperature: -25°C to 120°C
  • Manufacturer: KEMET
  • Also Known As: 399-10738 or UALSU10VD20010
