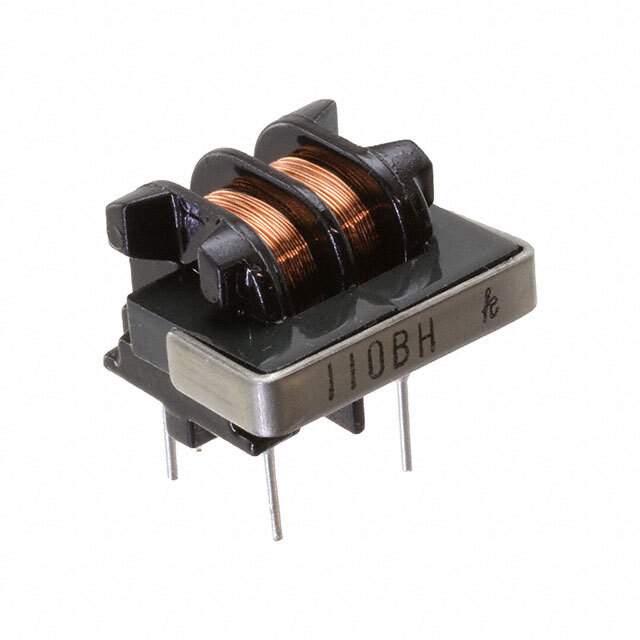

ST-110BH Real Image
Same model may have multiple batches, images only for reference.

ST-110BH

Part No ST-110BH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series ST
Package Tray
Filter Type Signal Line
Number of Lines 2
Current Rating (Max) 150mA
DC Resistance (DCR) (Max) 7.5Ohm
Voltage Rating - DC 50V
Temperature Range - Operating 20°C ~ 75°C
Mounting Type Through Hole
Dimension 0.669" L x 0.610" W (17.00mm x 15.50mm)
Height (Max) 0.472" (12.00mm)
Package / Case Horizontal, 8 PC Pin
Other Names UDLST00110BH00,399-ST-110BH
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276504-ST-110BH
Ultra Librarian 3D Model Ultra Librarian ST-110BH CAD Model

Description

The KEMET ST-110BH is a common mode choke that is part of the ST series.

  • Filter Type: Signal Line
  • Voltage Rating: 50V
  • Current Rating: 150mA
  • Height: 0.472 inches (12.00mm)
  • Dimension: 0.669 inches x 0.610 inches (17.00mm x 15.50mm)
  • DC Resistance (DCR): 7.5Ohm max
  • Mounting Type: Through-Hole
  • Package: Horizontal, 8 PC pin
  • Standard Package: 1,000
