Category Filters - Common Mode Chokes
Mfr KEMET
Series ST
Package Tray
Product Status Active
Number of Lines 2
Impedance @ Frequency 3 kOhms @ 500 kHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 180mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Through Hole
Size / Dimension 0.709" Dia (18.00mm)
Height (Max) 0.433" (11.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Standard Package 500 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277114-ST-101
Ultra Librarian 3D Model Ultra Librarian ST-101 CAD Model

Description

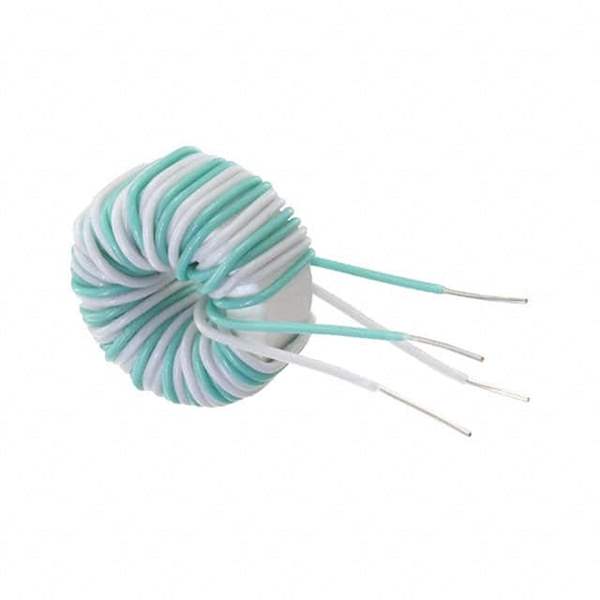

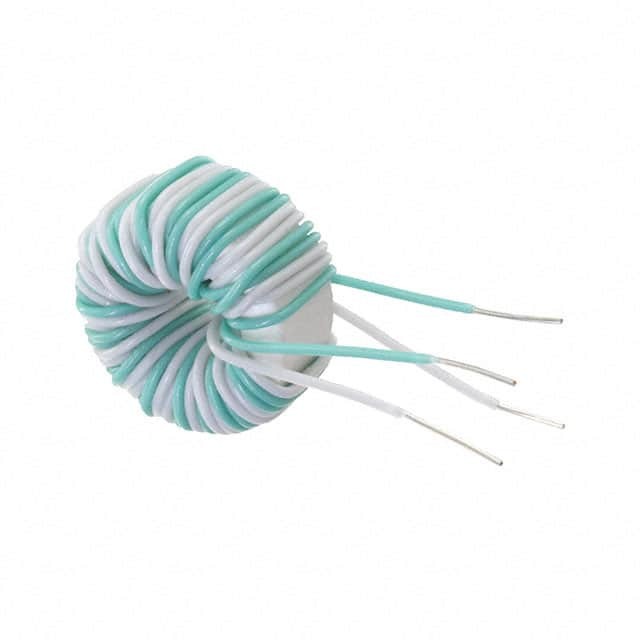

The ST series common mode choke is a highly reliable electronic component used in filters.

  • Current Rating: 200mA (max)
  • Impedance: 3 kOhms @ 500 kHz
  • DC Resistance (DCR): 180mOhm
  • Mounting: Through-Hole
  • Package: Vertical, no base, 4 PC pin
  • Temperature Range: -20°C to 75°C
  • Manufacturer: KEMET
  • Series: ST
  • Standard Package: 500 pcs
  • Status: Active
  • REACH: Unaffected
