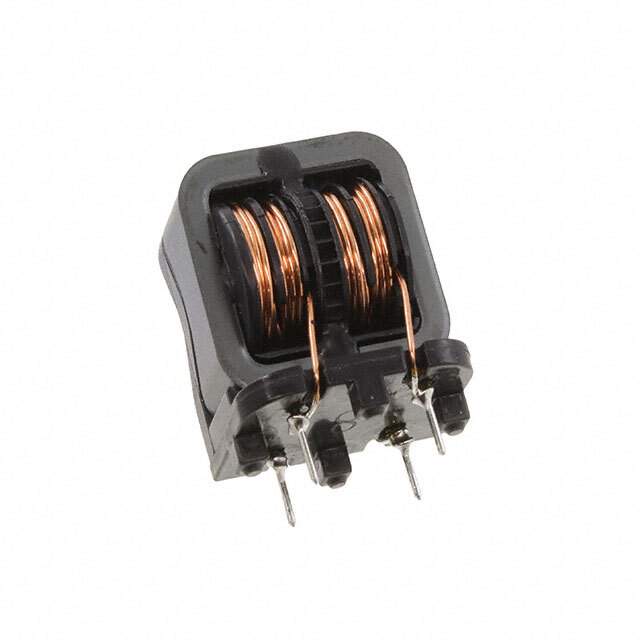

SSRH24NVS-25130 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NVS-25130

Part No SSRH24NVS-25130
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 13 mH @ 10 kHz
Current Rating (Max) 2.5A
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19077,UALS24VS251300
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276633-SSRH24NVS-25130
Ultra Librarian 3D Model Ultra Librarian SSRH24NVS-25130 CAD Model

Description

The KEMET SSRH24NVS-25130 is a common mode choke used in filters for electronic devices.

  • Maximum Current Rating: 2.5A
  • Voltage Rating: 250V AC
  • Package: Bulk
  • Standard Package: 240
  • Mounting Type: Through-Hole
  • Package/Case: Vertical, 4 PC Pin
  • Height: 1.220 inches or 31.00mm
  • Lines: 2
  • Inductance: 13 mH @ 10 kHz
  • Temperature Range: -25°C to 120°C
  • ECCN: EAR99
  • REACH: Unaffected
