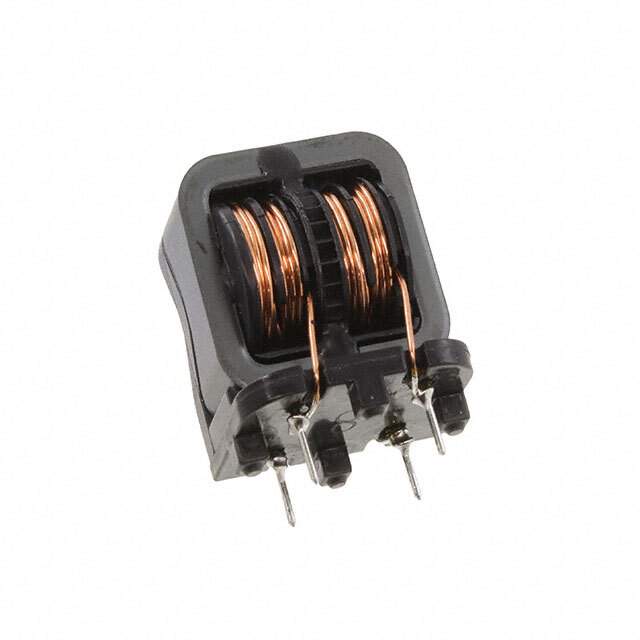

SSRH24NV-40069 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NV-40069

Part No SSRH24NV-40069
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 6.9 mH @ 10 kHz
Current Rating (Max) 4A
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19071,UALS24V4006900
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276528-SSRH24NV-40069
Ultra Librarian 3D Model Ultra Librarian SSRH24NV-40069 CAD Model

Description

The KEMET SSRH24NV-40069 is a through-hole vertical package electronic component designed for use in common mode chokes applications.

  • Voltage Rating: 250V
  • Current Rating: 4A
  • Operating Temperature Range: -25°C to 120°C
