Same model may have multiple batches, images only for reference.

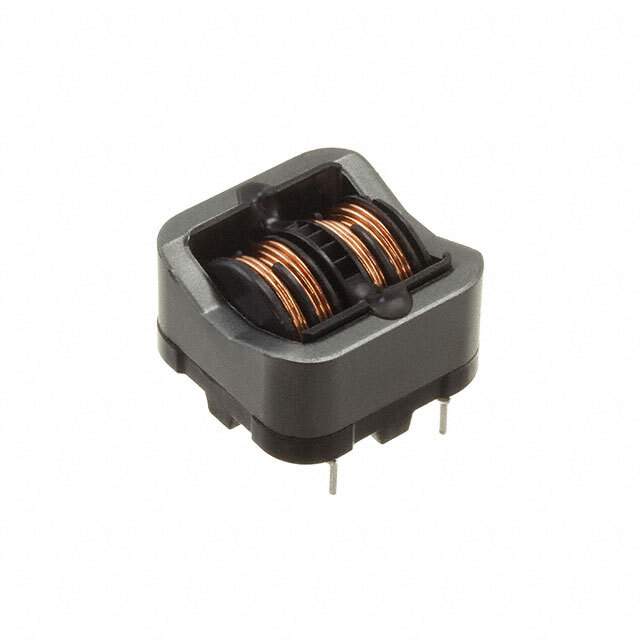

SSRH24NHS-30092 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NHS-30092

Part No SSRH24NHS-30092
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 9.2 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 79mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.004" L x 1.004" W (25.50mm x 25.50mm)
Height (Max) 0.709" (18.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names UALS24HS300920,399-19060
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276523-SSRH24NHS-30092
Ultra Librarian 3D Model Ultra Librarian SSRH24NHS-30092 CAD Model

Description

The SSRH24NHS-30092 is a common mode choke from KEMET that has a maximum DC resistance of 79mOhm and is rated for 250V AC voltage.

  • DC Resistance: 79mOhm (Max)
  • Voltage: 250V AC
  • Series: SSRH
  • Package Type: Bulk
  • Package: Vertical, 4 PC pin
