Same model may have multiple batches, images only for reference.

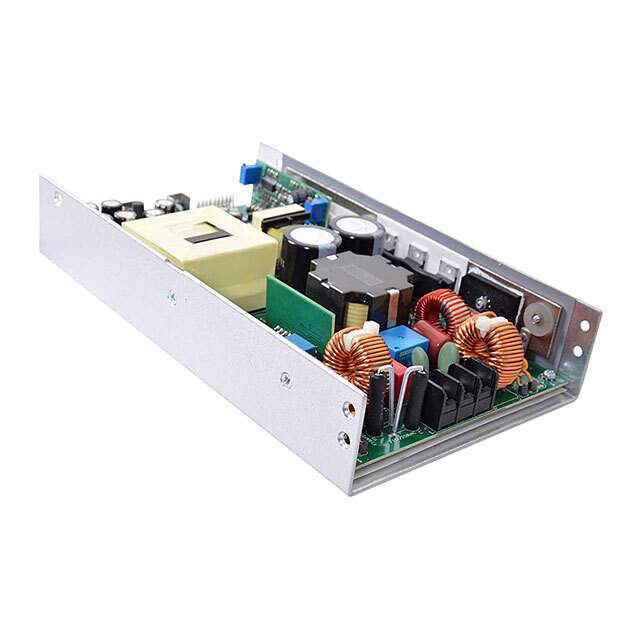

MBC800-1T12 Real Image
Same model may have multiple batches, images only for reference.

MBC800-1T12

Part No MBC800-1T12
Manufacturer Bel Power Solutions
Catalog Board Mount AC DC Converters
Description OPEN FRAME POWER SUPPLY 800W 12V / Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 390 VDC Input
Datasheet
MBC800-1T12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board)>AC DC Converters
Mfr Bel Power Solutions
Series MBC800 (800W)
Package Box
Product Status Obsolete
Type Open Frame
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 390 VDC
Voltage - Output 1 12V
Current - Output 1 25 A
Power (Watts) 300W (400W Forced Air)
Applications Medical
Voltage - Isolation 4.245 kV
Efficiency 93%
Temperature Range - Operating -40°C ~ 70°C (With Derating)
Features Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Mounting Type Chassis Mount
Dimension 8.50" L x 5.00" W x 1.61" H (216.0mm x 127.0mm x 41.0mm)
Approval Agency CE, cUL, Nemko, UL
Minimum Load Required No
Base Product Number MBC800
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9540
Other Names 179-3091,2266-MBC800-1T12
Standard Package 1
Win Source Part Number 1079809-MBC800-1T12
Ultra Librarian 3D Model Ultra Librarian MBC800-1T12 CAD Model

Description

The MBC800-1T12 is an AC DC converter manufactured by Bel Power Solutions.

  • Series: MBC800 (800W) series
  • Design: designed to provide excellent performance and reliability in a wide range of applications
  • Package: box
  • Power Output: 300W (400W Forced Air)
  • Voltage - Input: 85 ~ 264 VAC, 120 ~ 390 VDC
  • Voltage - Isolation: 4.245 kV
  • Ideal For: use in power supplies for medical applications.
