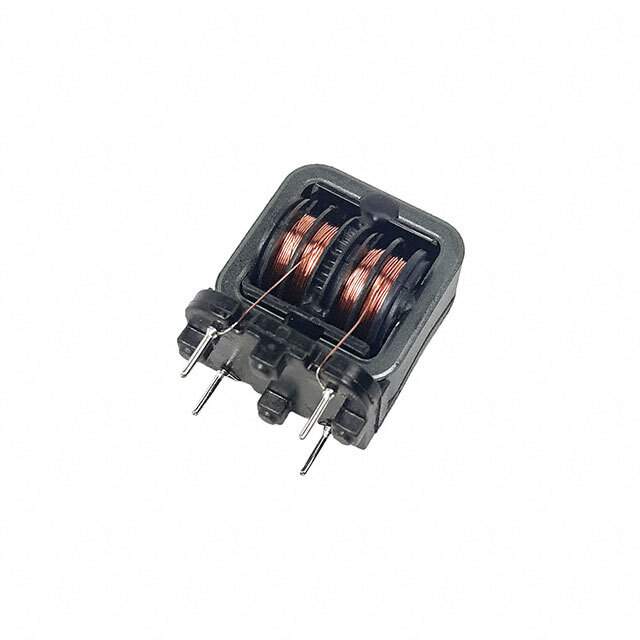

SSR21NVS-12135 Real Image
Same model may have multiple batches, images only for reference.

SSR21NVS-12135

Part No SSR21NVS-12135
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 13.5 mH @ 10 kHz
Current Rating (Max) 1.2A
DC Resistance (DCR) (Max) 240mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
Other Names 399-19512,UALN21VS121350
Standard Package 450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276632-SSR21NVS-12135
Ultra Librarian 3D Model Ultra Librarian SSR21NVS-12135 CAD Model

Description

This common mode choke is a part of the SSR series and has a Win Source Part Number of 1276632-SSR21NVS-12135. It is manufactured by Kemet and has a voltage rating of 250V.

  • Voltage Rating: 250V
  • Current Rating: 1.2A
  • Inductance: 13.5 mH @ 10 kHz
  • DC Resistance: 240mOhm
  • Mounting Type: Through Hole
  • Package/Case: Vertical, 4 PC Pin
  • Temperature Range: -25°C to 120°C
  • Supply and Demand Status: Unaffected by REACH
