Same model may have multiple batches, images only for reference.

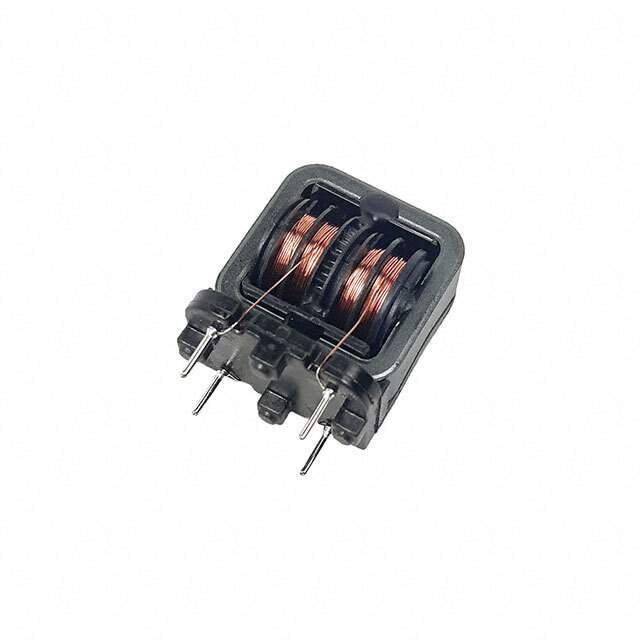

SSR21NVS-08235 Real Image
Same model may have multiple batches, images only for reference.

SSR21NVS-08235

Part No SSR21NVS-08235
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 23.5 mH @ 10 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 420mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
Other Names UALN21VS082350,399-19510
Standard Package 450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276605-SSR21NVS-08235
Ultra Librarian 3D Model Ultra Librarian SSR21NVS-08235 CAD Model

Description

The SSR21NVS-08235 common mode choke is a filter designed for through-hole mounting.

  • Voltage Rating: 250V AC
  • Maximum Current Rating: 800mA
  • Height: 1.063 inches (27.00mm)
  • Package/Case: Vertical, 4 PC pin
  • Inductance: 23.5mH @ 10kHz
  • Maximum DC Resistance: 420mOhm
  • Temperature Range: -25°C to 120°C
  • Package: Bulk package of 450
