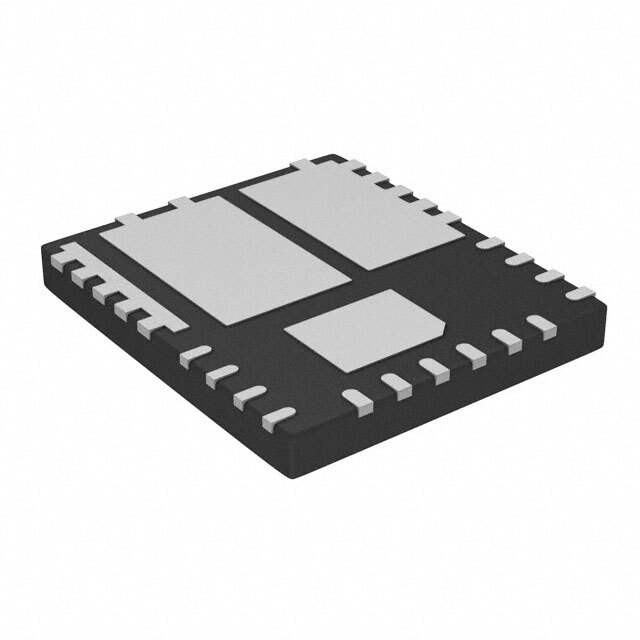

IRSM005-301MH Real Image
Same model may have multiple batches, images only for reference.

IRSM005-301MH

Part No IRSM005-301MH
Manufacturer Infineon Technologies
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRIVER 30A 27QFN
Datasheet
IRSM005-301MH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr Infineon Technologies
Series µIPM™
Package Tray
Product Status Active
Output Configuration Half Bridge
Applications AC Motors, DC Motors, DC-DC Converters, General Purpose
Interface Logic
Load Type Inductive, Capacitive
Technology Power MOSFET
Rds On (Typ) 16mOhm
Current - Output / Channel 30A
Voltage - Supply 10V ~ 20V
Voltage - Load 100V (Max)
Temperature Range - Operating 150°C (TJ)
Features Bootstrap Circuit
Fault Protection UVLO
Mounting Type Surface Mount
Package / Case 27-PowerVQFN
Supplier Device Package 27-PQFN (7x8)
Base Product Number IRSM005
Standard Package 260 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1316326-IRSM005-301MH
Ultra Librarian 3D Model Ultra Librarian IRSM005-301MH CAD Model

Description

The 1316326-IRSM005-301MH is a full half-bridge driver from Infineon Technologies.

  • Category: Power Management (PMIC)
  • Application: AC and DC Motors, DC-DC Converters
  • Current Output: 30A
  • Load Voltage (Max): 100V
  • Features: Bootstrap Circuit, Logic Interface
  • Mounting Type: Surface Mount
  • Package: 27-PowerVQFN
  • Standard Package Size: 260 Pieces
  • ECCN: EAR99
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS Code: 8542.39.0001
  • Status: Active
