Same model may have multiple batches, images only for reference.

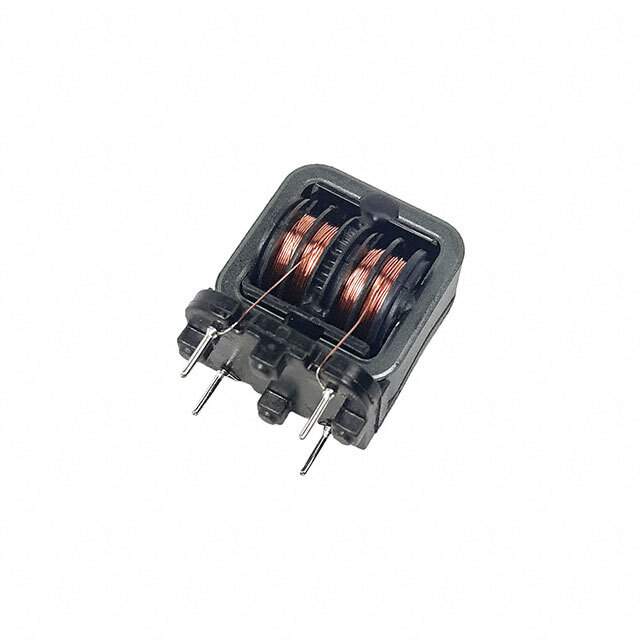

SSR21NVS-06385 Real Image
Same model may have multiple batches, images only for reference.

SSR21NVS-06385

Part No SSR21NVS-06385
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 38.5 mH @ 10 kHz
Current Rating (Max) 600mA
DC Resistance (DCR) (Max) 710mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.630" W (22.00mm x 16.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR21NV
Other Names 399-19508,UALN21VS063850
Standard Package 450
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276587-SSR21NVS-06385
Ultra Librarian 3D Model Ultra Librarian SSR21NVS-06385 CAD Model

Description

The Kemet SSR21NVS-06385 is a common mode choke used in various applications including power supplies, automotive, and industrial applications.

  • Voltage Rating: 250V
  • Current Rating: 600mA
  • Dimensions: 0.866" L x 0.630" W (22.00mm x 16.00mm)
  • Height: 1.063" (27.00mm)
  • Mounting Type: through hole
  • Package: vertical, 4 PC pin package
  • Manufacturer: Kemet
  • Win Source Part Number: 1276587-SSR21NVS-06385
