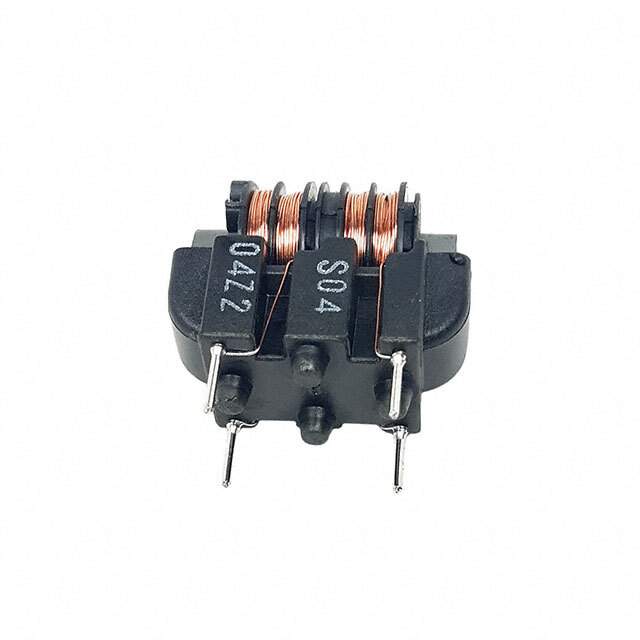

SSR10VS-30013 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-30013

Part No SSR10VS-30013
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 1.3 mH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 60mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
Other Names 399-19046,UALR10VS300130
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276647-SSR10VS-30013
Ultra Librarian 3D Model Ultra Librarian SSR10VS-30013 CAD Model

Description

The Kemet 1276647-SSR10VS-30013 is a common mode choke filter with a voltage rating of 250V.

  • Voltage Rating: 250V
  • Current Rating: 3A
  • Inductance value: 1.3 mH @ 10 kHz
  • DC resistance (DCR): 60mOhm
  • Mounted using: Through-hole technology
  • Height: 0.827" (21.00mm) when seated
  • Operating temperature range: -25°C to 120°C
