Same model may have multiple batches, images only for reference.

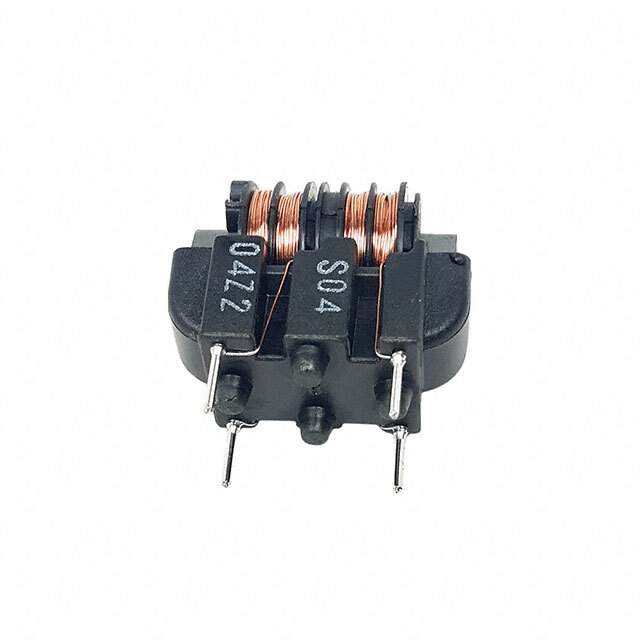

SSR10VS-04745 Real Image
Same model may have multiple batches, images only for reference.

SSR10VS-04745

Part No SSR10VS-04745
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 74.5 mH @ 10 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 2.5Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max) 0.827" (21.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10VS
Other Names UALR10VS047450,399-19036
Standard Package 600
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276564-SSR10VS-04745
Ultra Librarian 3D Model Ultra Librarian SSR10VS-04745 CAD Model

Description

The Kemet 1276564-SSR10VS-04745 is a common mode choke with a current rating of 400mA and a voltage rating of 250V AC.

  • Current Rating: 400mA
  • Voltage Rating: 250V AC
  • Mounting: Through-hole
  • Application: automotive applications
  • Temperature Range: -25°C to 120°C
  • Height: 0.827" (21.00mm)
  • Dimension: 0.925" L x 0.512" W (23.50mm x 13.00mm)
  • Series: SSR series
  • Lines: 2
  • Inductance: 74.5 mH @ 10 kHz
  • DCR: 2.5Ohm
