Same model may have multiple batches, images only for reference.

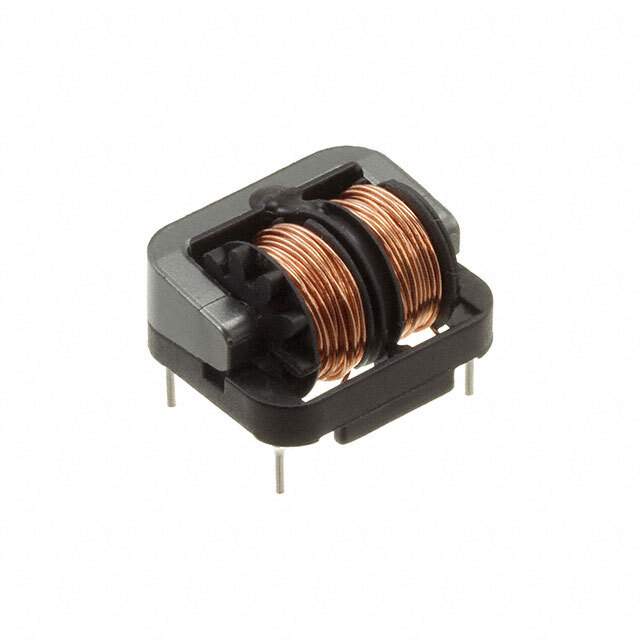

SSR10H-10170 Real Image
Same model may have multiple batches, images only for reference.

SSR10H-10170

Part No SSR10H-10170
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSR
Package Bulk
Number of Lines 2
Inductance @ Frequency 17 mH @ 10 kHz
Current Rating (Max) 1A
DC Resistance (DCR) (Max) 480mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 0.531" (13.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSR10H
Other Names UALR10H1017000,399-19008
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276617-SSR10H-10170
Ultra Librarian 3D Model Ultra Librarian SSR10H-10170 CAD Model

Description

The KEMET SSR10H-10170 is a common mode choke filter that is suitable for use in various electronic devices.

  • Voltage Rating: 250V
  • Maximum Current Rating: 1A
  • Package: Bulk
  • Mounting Type: Vertical, 4 PC pin
  • Inductance: 17 mH @ 10 kHz
  • DC Resistance (DCR): 480mOhm
