Same model may have multiple batches, images only for reference.

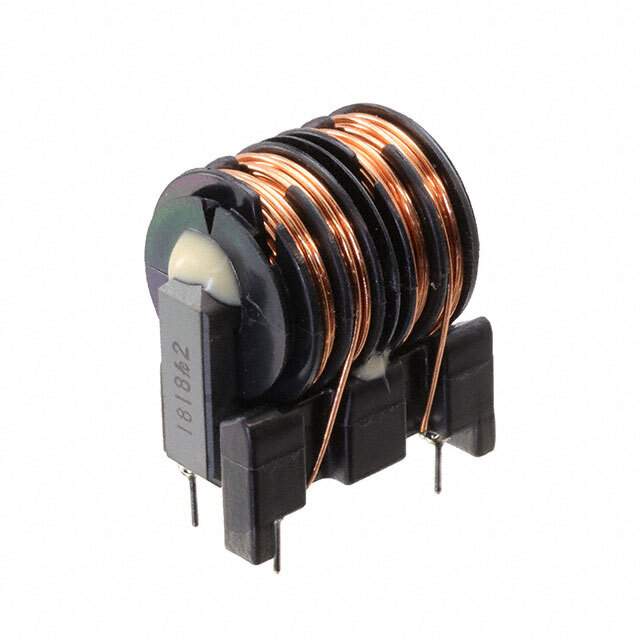

SS30V-180145 Real Image
Same model may have multiple batches, images only for reference.

SS30V-180145

Part No SS30V-180145
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 14.5 mH @ 1 kHz
Current Rating (Max) 1.8A
DC Resistance (DCR) (Max) 230mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max) 1.339" (34.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS30V
Other Names UAL30V18014500,399-SS30V-180145
Standard Package 200
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276730-SS30V-180145
Ultra Librarian 3D Model Ultra Librarian SS30V-180145 CAD Model

Description

The SS series common mode choke is an ideal choice for power line filtering applications.

  • Maximum Current Rating: 1.8A
  • Voltage Rating: 250V AC
  • Lines: 2
  • Height: 1.339 inches
  • Package: Includes a tray
  • Inductance @ Frequency: 14.5 mH @ 1 kHz
  • DC Resistance (DCR): 230mOhm
  • Mounting: Through a hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: Between -25°C and 120°C
  • Manufacturer: KEMET
  • Base Product Number: SS30V
