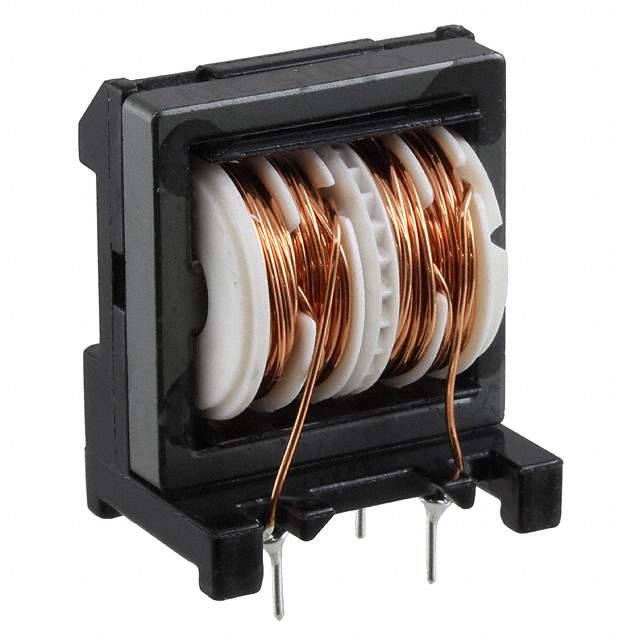

SS28V-K20115-CH Real Image
Same model may have multiple batches, images only for reference.

SS28V-K20115-CH

Part No SS28V-K20115-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 11.5 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 220mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" L x 0.866" W (30.00mm x 22.00mm)
Height (Max) 1.398" (35.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS28V
Other Names UAL28VK20115CH,399-10760
Standard Package 300
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276795-SS28V-K20115-CH
Ultra Librarian 3D Model Ultra Librarian SS28V-K20115-CH CAD Model

Description

The SS28V-K20115-CH is a common mode choke manufactured by KEMET.

  • Voltage Rating: 250V
  • Current Rating: 2A
  • Inductance: 11.5 mH @ 1 kHz
  • DC Resistance (DCR): 220mOhm max
  • Package: Vertical, 4 PC pin
  • Status: Limited supply and demand
This common mode choke is a popular choice for use in various electronic applications, including power line filters.
