Same model may have multiple batches, images only for reference.

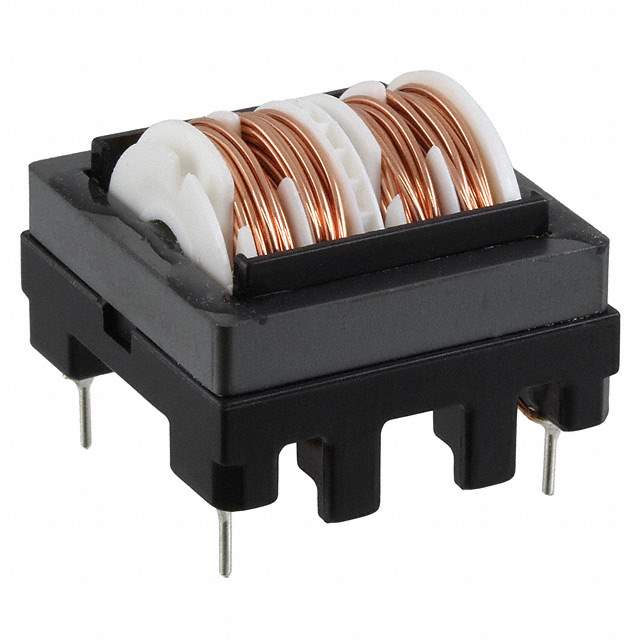

SS28H-R20130-CH Real Image
Same model may have multiple batches, images only for reference.

SS28H-R20130-CH

Part No SS28H-R20130-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Description CMC 13MH 2A 2LN TH / 13 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A DCR 220mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 13 mH @ 1 kHz
Current Rating (Max) 2A
DC Resistance (DCR) (Max) 220mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max) 0.965" (24.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS28H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Other Names 399-10756,UAL28HR20130CH
Standard Package 200
Win Source Part Number 966046-SS28H-R20130-CH
Ultra Librarian 3D Model Ultra Librarian SS28H-R20130-CH CAD Model

Description

The Kemet SS28H-R20130-CH Common Mode Choke is a reliable electronic component that is widely used in various applications.

  • DC Resistance: 220mOhm
  • Maximum Current Rating: 2A
  • Operating Temperature: -25°C to 120°C
  • Mounting Type: Through-Hole
  • Package: Vertical, 4 PC Pin
  • Packaging: Tray
