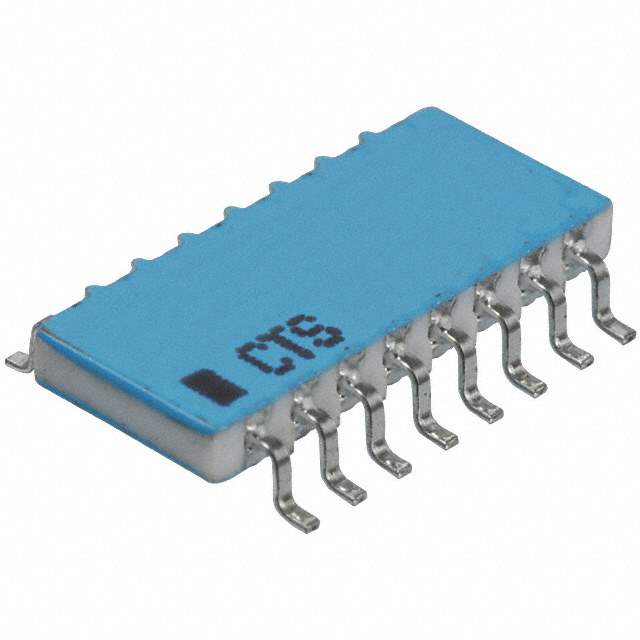

Same model may have multiple batches, images only for reference.

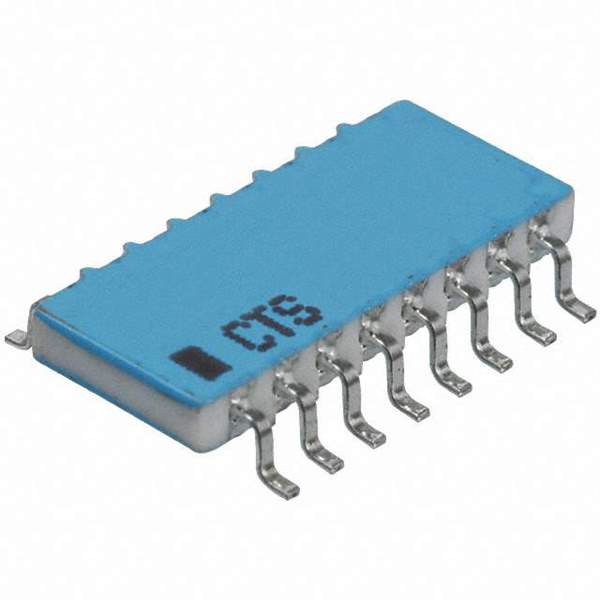

767163470GP Real Image
Same model may have multiple batches, images only for reference.

767163470GP

Part No 767163470GP
Manufacturer CTS Resistor Products
Catalog Resistor Networks, Arrays
Description RES ARRAY 8 RES 47 OHM 16SOIC / 47 Ohm ±2% 200mW Power Per Element Isolated 8 Resistor Network/Array ±200ppm/°C 16-SOIC (0.220", 5.59mm Width)
Datasheet
767163470GP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Manufacturer CTS Resistor Products
Packaging Tube
Circuit Type Isolated
Resistance (Ohms) 47
Tolerance ±2%
Number of Resistors 8
Number of Pins 16
Power Per Element 200mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Mounting Surface Mount
Case / Package 16-SOIC (0.220", 5.59mm Width)
Size / Dimension 0.440" L x 0.220" W (11.18mm x 5.59mm)
Height - Seated (Max) 0.093" (2.36mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0010
Other Part Number 767-163-R47P
Standard Package 43
Win Source Part Number 1328295-767163470GP
Ultra Librarian 3D Model Ultra Librarian 767163470GP CAD Model

Description

This resistor network is manufactured by CTS Resistor Products and has a Win Source Part Number of 1328295-767163470GP.

  • Composition: Thick Film
  • Resistance: 47 ohms
  • Tolerance: ±2%
  • Power Per Element: 200mW
  • Number of Resistors: 8
  • Number of Pins: 16
  • Package Type: 16-SOIC (0.220", 5.59mm Width)
  • Mounting Type: Surface Mount
  • Size: 0.440" L x 0.220" W (11.18mm x 5.59mm)
  • Moisture Resistant: True
  • Category: Resistors and Resistor Networks, Arrays
  • ECCN: EAR99
  • HTSUS: 8533.21.0010
  • ROHS3 Compliant: True
  • REACH Status: Unaffected
