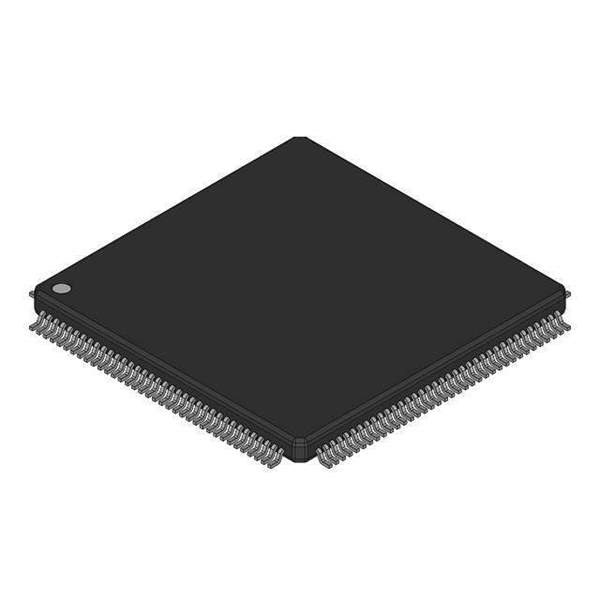

MC9S12XHZ256VAG Real Image
Same model may have multiple batches, images only for reference.

MC9S12XHZ256VAG

Part No MC9S12XHZ256VAG
Manufacturer Rochester Electronics
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 256KB FLASH 144LQFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features HCS12X series Microcontroller IC 16-Bit 80MHz 256KB (256K x 8) FLASH 144-LQFP (20x20)
Manufacturer Freescale Semiconductor - NXP
Series HCS12X
Package Bulk
Core Processor HCS12X
Core Size 16-Bit
Speed 80MHz
Connectivity CANbus, EBI/EMI, I²C, LINbus, SCI, SPI
Peripherals LCD, Motor control PWM, POR, PWM, WDT
Number of I/O 117
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 4K x 8
Supply Voltage 2.35V ~ 5.5V
Data Converters A/D 16x10b
Oscillator Type External
Operating Temperature Range -40°C ~ 105°C (TA)
Mounting Surface Mount
Package 144-LQFP
Case / Package 144-LQFP (20x20)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
HTSUS 8542.31.0001
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 883944-MC9S12XHZ256VAG
Ultra Librarian 3D Model Ultra Librarian MC9S12XHZ256VAG CAD Model

Description

The MC9S12XHZ256VAG is a microcontroller IC manufactured by Freescale Semiconductor - NXP.

  • Series: HCS12X
  • Core Processor: HCS12X
  • Speed: 80MHz
  • Program Memory Size: 256KB (256K x 8) FLASH
  • EEPROM Size: 4K x 8
  • Mounting: Surface Mount Device
  • Package Size: 144-LQFP
  • I/O: 117
  • Industry Applications: Automotive, industrial, and consumer electronics industries
  • Popularity: Medium
  • ECCN: EAR99
  • REACH: Unaffected
