Same model may have multiple batches, images only for reference.

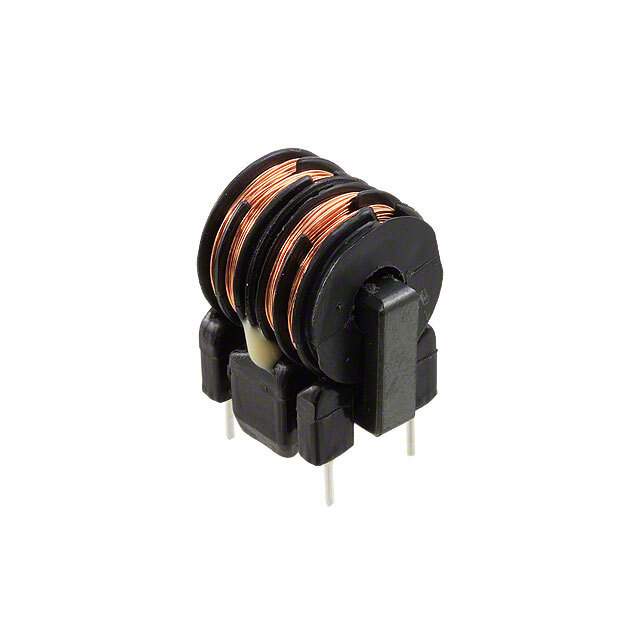

SS21V-040520 Real Image
Same model may have multiple batches, images only for reference.

SS21V-040520

Part No SS21V-040520
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 52 mH @ 1 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 5.4Ohm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.807" L x 0.650" W (20.50mm x 16.50mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS21V
Other Names 399-10562,UAL21V04052000
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276754-SS21V-040520
Ultra Librarian 3D Model Ultra Librarian SS21V-040520 CAD Model

Description

The SS21V-040520 is a common mode choke designed by KEMET.

  • Voltage Rating: 250V
  • Current Rating: 400mA
  • Inductance: 52 mH @ 1 kHz
  • DC Resistance: 5.4Ohm
  • Package: vertical, 4 PC pin package
  • Temperature Range: -25°C to 120°C
