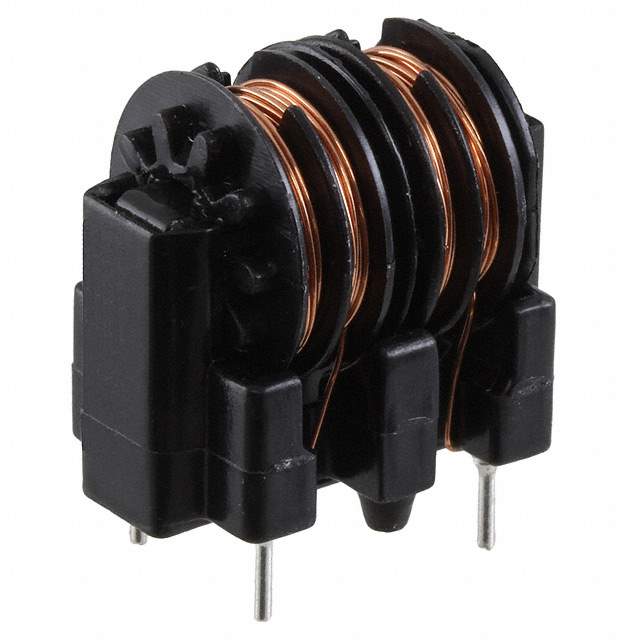

SS11V-R08125-CH Real Image
Same model may have multiple batches, images only for reference.

SS11V-R08125-CH

Part No SS11V-R08125-CH
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SS
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 12.5 mH @ 1 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 740mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.571" W (22.00mm x 14.50mm)
Height (Max) 0.886" (22.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SS11V
Other Names UAL11VR08125CH,399-10747
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276790-SS11V-R08125-CH
Ultra Librarian 3D Model Ultra Librarian SS11V-R08125-CH CAD Model

Description

The Kemet SS11V-R08125-CH is a common mode choke with a filter type of power line.

  • Filter Type: Power line
  • Voltage Rating: 250V
  • Current Rating: 800mA
  • Inductance @ Frequency: 12.5 mH @ 1 kHz
  • DC Resistance (DCR): 740mOhm
  • Mounting Type: Through-Hole
  • Package: Vertical, 4 PC pin
  • Height: 0.886" (22.50mm)
  • Temperature Range: -25°C to 120°C
  • REACH: unaffected
  • ECCN: EAR99
  • Package: Bulk
  • Standard Package: 600
