Same model may have multiple batches, images only for reference.

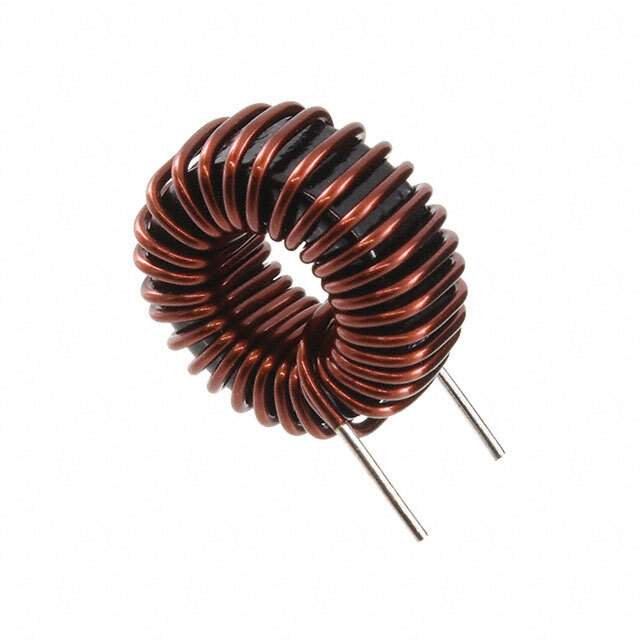

SNT-S10TF Real Image
Same model may have multiple batches, images only for reference.

SNT-S10TF

Part No SNT-S10TF
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-S10TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 1.5 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 25Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.197" W (9.50mm x 5.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-S
Other Names UDLSNT0S10TF00,399-SNT-S10TFTB
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276813-SNT-S10TF
Ultra Librarian 3D Model Ultra Librarian SNT-S10TF CAD Model

Description

This Kemet common mode choke is part of the SNT series and has a current rating of 3A.

  • Series: SNT
  • Current Rating: 3A
  • Filter Type: Signal line
  • Inductance: 1.5 μH @ 100 kHz
  • MSL Level: Not applicable
  • Win Source Part Number: 1276813-SNT-S10TF
