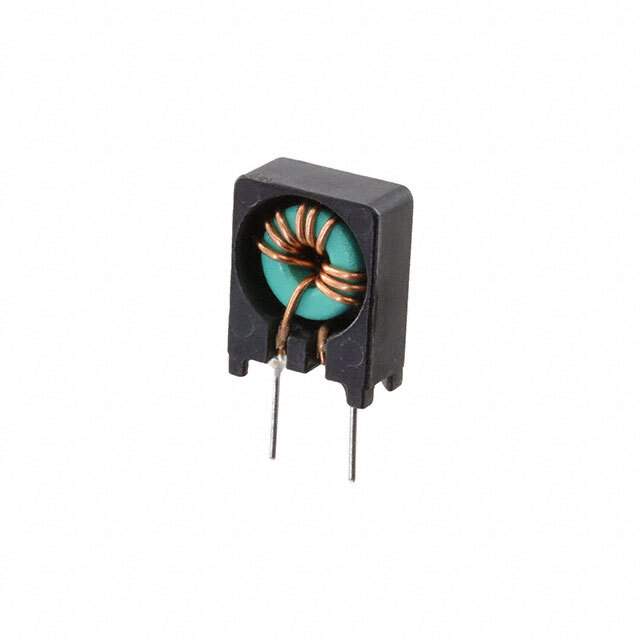

SNT-D10 Real Image
Same model may have multiple batches, images only for reference.

SNT-D10

Part No SNT-D10
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-D10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 2.5 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 25Ohm
Temperature Range - Operating 20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.236" W (9.50mm x 6.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-D
Other Names 399-SNT-D10,UDLSNT0D100000
Standard Package 1,000
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276816-SNT-D10
Ultra Librarian 3D Model Ultra Librarian SNT-D10 CAD Model

Description

The KEMET SNT-D10 is a common mode choke filter designed for signal line filtering applications.

  • Lines: Two-line filter
  • Inductance: 2.5μH @ 100kHz
  • Maximum DC Resistance: 25Ohm
  • Current Rating: 3A
  • Package: Vertical, 2 PC pin
  • Temperature Range: 20°C to 60°C
  • Dimensions: 0.374 inches in length and 0.236 inches in width
  • Package Quantity: 1000 units per package
  • ECCN: EAR99
  • REACH: Unaffected
  • Series: SNT
