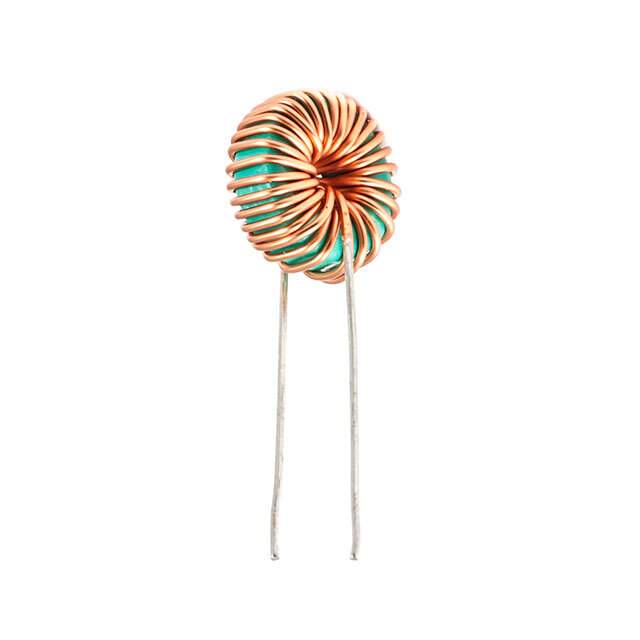

SN13-400 Real Image
Same model may have multiple batches, images only for reference.

SN13-400

Part No SN13-400
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SN13-400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SN
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 92 µH @ 100 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 30mOhm
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Height (Max) 1.240" (31.50mm)
Package / Case Vertical, No Base, 2 PC Pin
Base Product Number SN13
Other Names 399-20572,UALSN134000000
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276820-SN13-400
Ultra Librarian 3D Model Ultra Librarian SN13-400 CAD Model

Description

The KEMET SN13-400 is a common mode choke that is used in power line filters.

  • Maximum Current Rating: 6A
  • Inductance: 92 µH @ 100 kHz
  • DC Resistance (DCR): 30mOhm
  • Mounting: Through a hole
  • Package: Vertical, no base, 2 PC pin package
  • Operating Temperature Range: -25°C to 105°C
  • ECCN: EAR99 compliant
  • REACH regulations: Not affected
  • Manufacturer: KEMET
