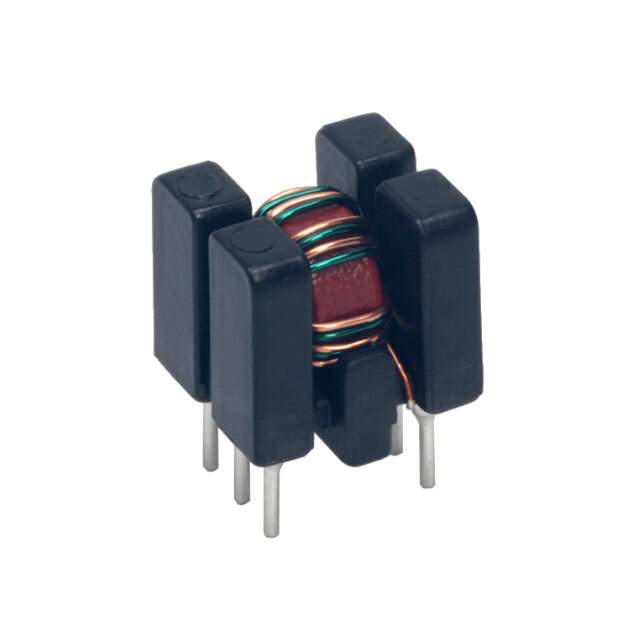

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 18mOhm
Voltage Rating - DC 150V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.374" (9.50mm)
Package / Case Vertical, 4 PC Pin
Other Names 399-19659,UDLSH002110000
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276863-SH-211
Ultra Librarian 3D Model Ultra Librarian SH-211 CAD Model

Description

The SH-211 is a common mode choke from KEMET's SH series.

  • Manufacturer:KEMET
  • Series: SH
  • Application: Power line filtering
  • Voltage Rating (DC): 150V
  • Current Rating: 3A
  • Height: 0.374" (9.50mm)
  • Package/Case: Vertical, 4 PC pin
  • Mounting Type: Through-hole
  • Temperature Range: -25°C ~ 80°C
  • DC Resistance (DCR): 18mOhm
  • ECCN: EAR99
