Same model may have multiple batches, images only for reference.

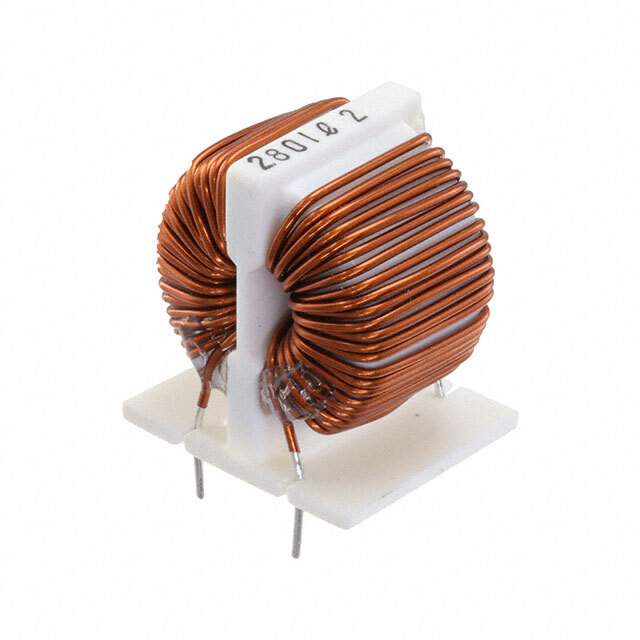

SCR31H-225-2R0A014J Real Image
Same model may have multiple batches, images only for reference.

SCR31H-225-2R0A014J

Part No SCR31H-225-2R0A014J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SCR
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.4 mH @ 10 kHz
Current Rating (Max) 22.5A
DC Resistance (DCR) (Max) 5mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.772" L x 1.220" W (45.00mm x 31.00mm)
Height (Max) 1.732" (44.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SCR31H
Other Names 399-SCR31H-225-2R0A014J,UALF32R0A014J0
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276875-SCR31H-225-2R0A014J
Ultra Librarian 3D Model Ultra Librarian SCR31H-225-2R0A014J CAD Model

Description

The KEMET 1276875-SCR31H-225-2R0A014J Common Mode Choke is a power line filter with a maximum current rating of 22.5A and a maximum DC resistance of 5mOhm.

  • Manufacturer:KEMET
  • Filter Type: Power Line
  • Maximum Current Rating: 22.5A
  • Maximum DC Resistance: 5mOhm
  • Voltage Rating (AC/DC): 250V AC/DC
  • Mounting: Through-Hole
  • Package: Tray
  • Pin Configuration: Vertical, 4 PC pin
  • Lines: 2
  • Height: 1.732" (44.00mm)
  • Operating Temperature Range: 25°C to 120°C
  • Series: SCR
  • Inductance: 1.4 mH @ 10 kHz
