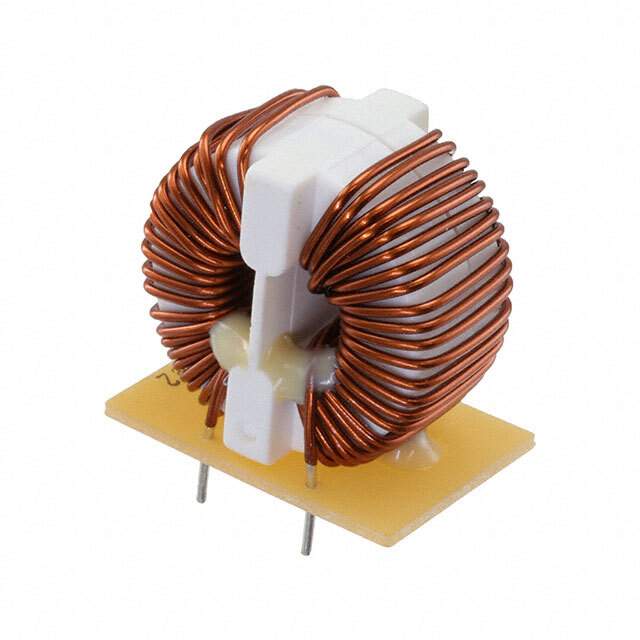

SC22-05-30J Real Image
Same model may have multiple batches, images only for reference.

SC22-05-30J

Part No SC22-05-30J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 3 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 50mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.102" L x 0.728" W (28.00mm x 18.50mm)
Height (Max) 1.142" (29.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC22-05
Other Names UALSC220530J00,399-SC22-05-30J
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276978-SC22-05-30J
Ultra Librarian 3D Model Ultra Librarian SC22-05-30J CAD Model

Description

The KEMET 1276978-SC22-05-30J Common Mode Choke is a power line filter with a maximum current rating of 5A and a voltage rating of 250V AC/DC.

  • Maximum DC Resistance: 50mOhm
  • Mounting: Through-hole
  • Package: Tray, with a vertical, 4 PC pin configuration
  • Filter Type: Power line, with two lines
  • Height: 1.142" (29.00mm)
  • Temperature Range: 25°C to 120°C
  • Series: SC series
  • Inductance: 3 mH @ 10 kHz
  • Ideal for: Electronic applications that require power filtering.
