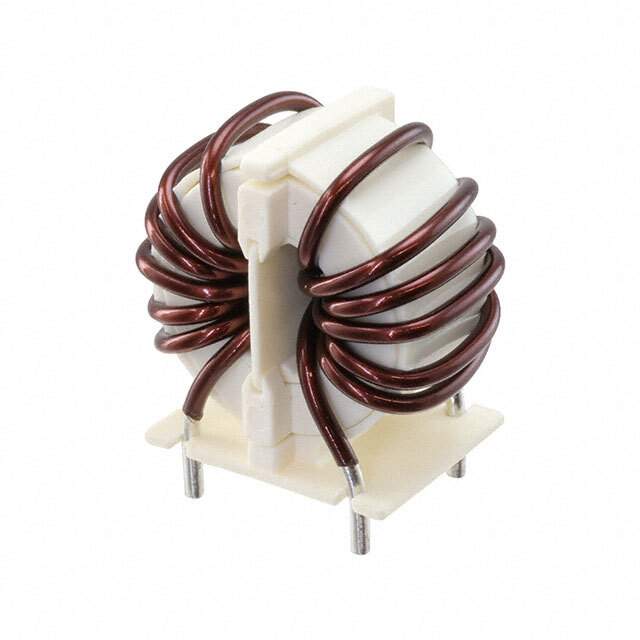

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.8 mH @ 10 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 6.8mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.969" L x 1.220" W (50.00mm x 31.00mm)
Height (Max) 2.087" (53.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-20
Other Names UALSC20E18J000,399-SC-20-E18J
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277001-SC-20-E18J
Ultra Librarian 3D Model Ultra Librarian SC-20-E18J CAD Model

Description

The KEMET SC-20-E18J is a common mode choke filter designed to reduce electromagnetic interference (EMI) in power line applications.

  • Maximum AC and DC Voltage Rating: 250V
  • Maximum Current Rating: 20A
  • Package Type: Tray
  • Mounting Type: Through hole
  • Standard Package: 60
  • Filter Type: Power line
  • Height: 2.087 inches
  • Dimension Length: 1.969 inches
  • Dimension Width: 1.220 inches
  • Temperature Range: 25°C to 120°C
  • Inductance: 1.8mH @ 10kHz
  • DC Resistance: 6.8mOhm
