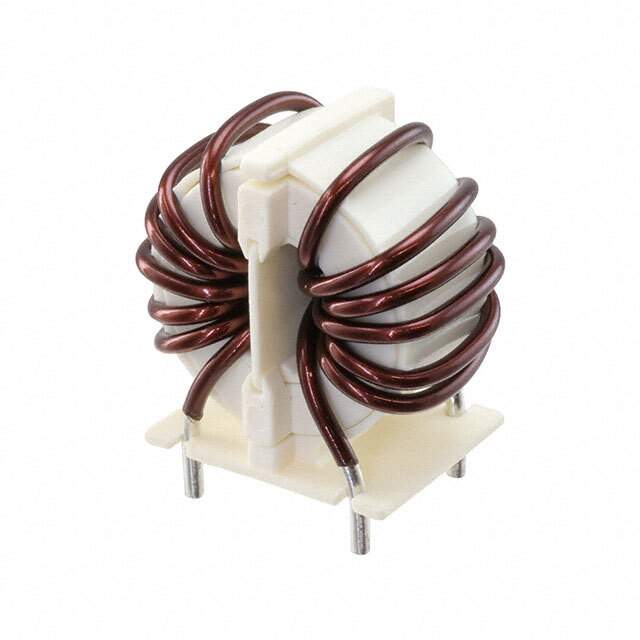

SC-20-E085JM

Part No SC-20-E085JM
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1.2 mH @ 10 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 6mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.811" L x 1.260" W (46.00mm x 32.00mm)
Height (Max) 1.811" (46.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-20
Other Names UALSC20E085JM0,399-SC-20-E085JM
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277014-SC-20-E085JM
Ultra Librarian 3D Model Ultra Librarian SC-20-E085JM CAD Model

Description

The SC-20-E085JM is a common mode choke filter from KEMET.

  • Maximum Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 20A
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Lines: Two
  • Inductance: 1.2mH @ 10kHz
  • DC Resistance (DCR): 6mOhm
  • Temperature Range: 25°C to 120°C
  • Dimension: 1.811" L x 1.260" W (46.00mm x 32.00mm)
