Same model may have multiple batches, images only for reference.

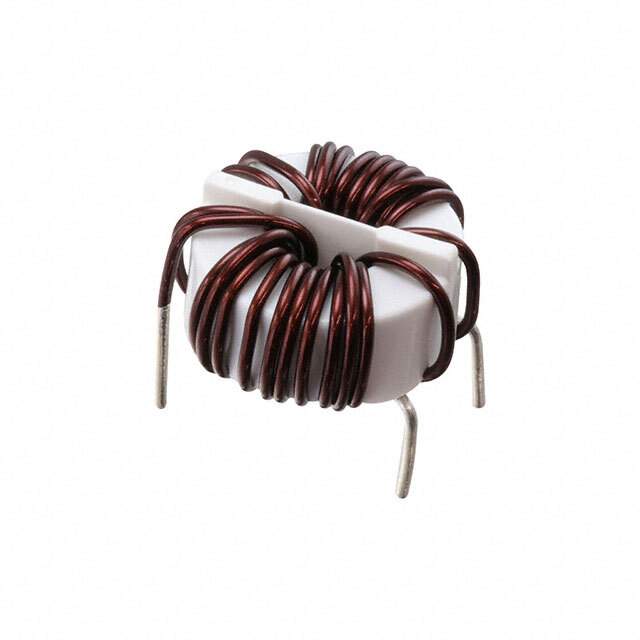

SC-20-104 Real Image
Same model may have multiple batches, images only for reference.

SC-20-104

Part No SC-20-104
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 100 kHz
Current Rating (Max) 20A
DC Resistance (DCR) (Max) 8mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 2.047" Dia (52.00mm)
Height (Max) 1.220" (31.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-20
Other Names UALSC201040000,399-SC-20-104
Standard Package 90
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277093-SC-20-104
Ultra Librarian 3D Model Ultra Librarian SC-20-104 CAD Model

Description

The Kemet SC-20-104 common mode choke is a reliable and high-performance component that is perfect for a wide range of electronic applications.

  • Voltage Rating: 250V
  • Current Rating: 20A
  • Temperature Range: -25°C to 105°C
  • Package Type: Through-Hole
  • Height: 1.220" (31.00mm)
  • Filter: Power Line
  • Inductance: 1 mH @ 100 kHz
  • DC Resistance (DCR): 8mOhm
