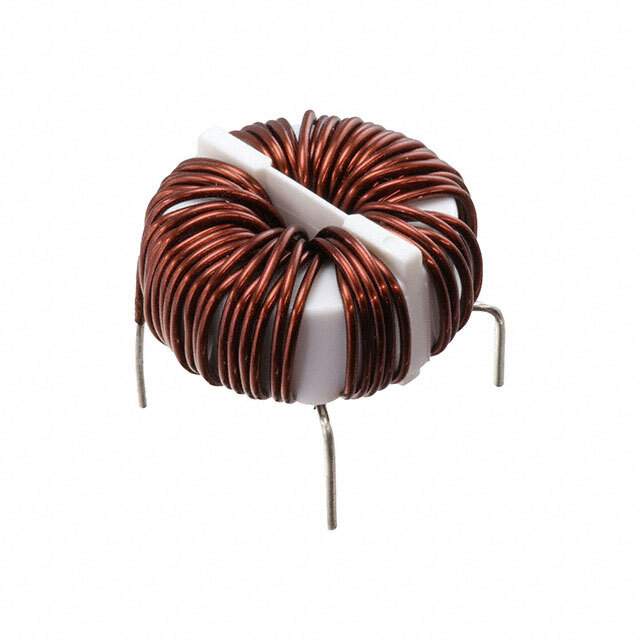

SC-10-500 Real Image
Same model may have multiple batches, images only for reference.

SC-10-500

Part No SC-10-500
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 25mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.929" Dia (49.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Horizontal, No Base, 4 PC Pin
Base Product Number SC-10
Other Names 399-SC-10-500,UALSC105000000
Standard Package 90
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277043-SC-10-500
Ultra Librarian 3D Model Ultra Librarian SC-10-500 CAD Model

Description

This SC series common mode choke is a power line filter type IC. This IC is ideal for use in common mode chokes and filter applications.

  • Filter Type: Power Line
  • Maximum Voltage Rating: 250V AC
  • Maximum Voltage Rating: 250V DC
  • Maximum Current Rating: 10A
  • Package: Bulk
  • Height: 1.063" (27.00mm)
  • Number of Lines: 2
  • Inductance at Frequency: 5 mH @ 100 kHz
  • DC Resistance (DCR): 25mOhm
  • Mounting Type: Through-hole
  • Temperature Range: -25°C to 105°C
