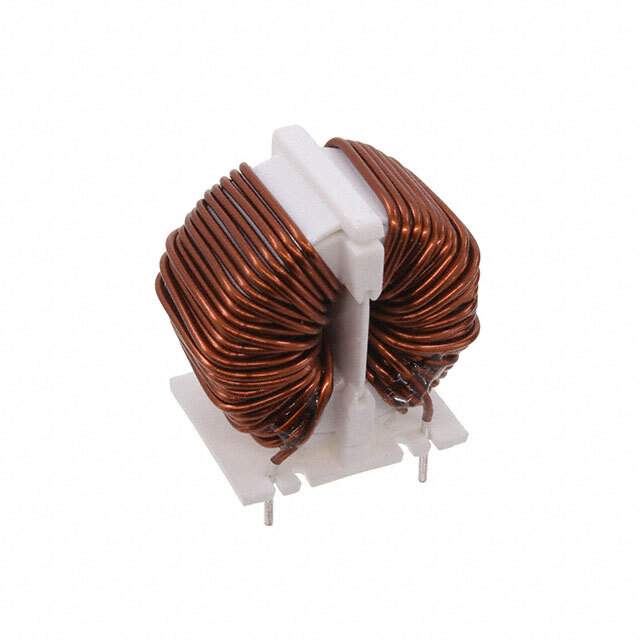

SC-06-10J-B Real Image
Same model may have multiple batches, images only for reference.

SC-06-10J-B

Part No SC-06-10J-B
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 1 kHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 30mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-06
Other Names UALSC0610JB000,399-SC-06-10J-B
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277020-SC-06-10J-B
Ultra Librarian 3D Model Ultra Librarian SC-06-10J-B CAD Model

Description

The SC-06-10J-B is a common mode choke manufactured by KEMET.

  • Voltage Rating: 250V AC/DC
  • Current Rating: 6A
  • Mounting Type: Through-hole
  • Temperature Range: 25°C to 120°C
  • ECCN: EAR99
  • REACH: Unaffected
