Same model may have multiple batches, images only for reference.

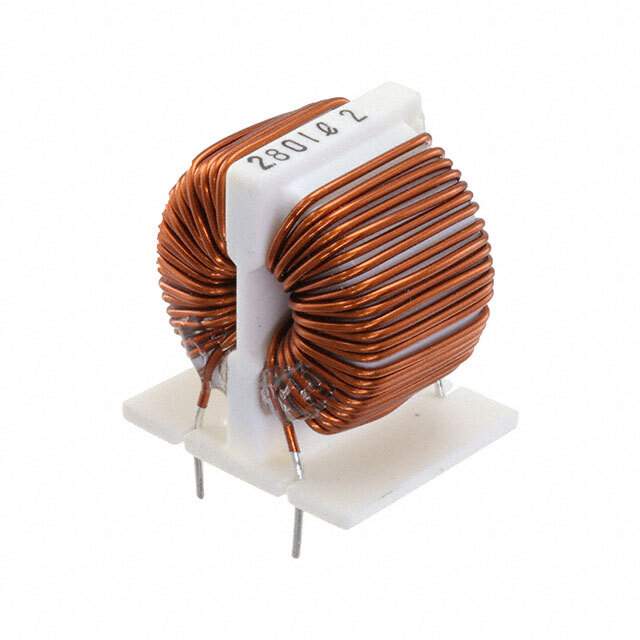

SC-05-06J Real Image
Same model may have multiple batches, images only for reference.

SC-05-06J

Part No SC-05-06J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 600 µH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 27mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.787" W (25.00mm x 20.00mm)
Height (Max) 1.063" (27.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-05
Other Names 399-SC-05-06J,UALSC0506J0000
Standard Package 400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1276943-SC-05-06J
Ultra Librarian 3D Model Ultra Librarian SC-05-06J CAD Model

Description

The KEMET 1276943-SC-05-06J is a common mode choke designed for power line filtering applications.

  • Voltage Rating: 250V AC/DC
  • Maximum Current Rating: 5A
  • Inductance @ Frequency: 600μH @ 100kHz
  • DC Resistance (DCR): 27mOhm (maximum)
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range: 25°C to 120°C
  • Dimension: 0.984" L x 0.787" W (25.00mm x 20.00mm)
