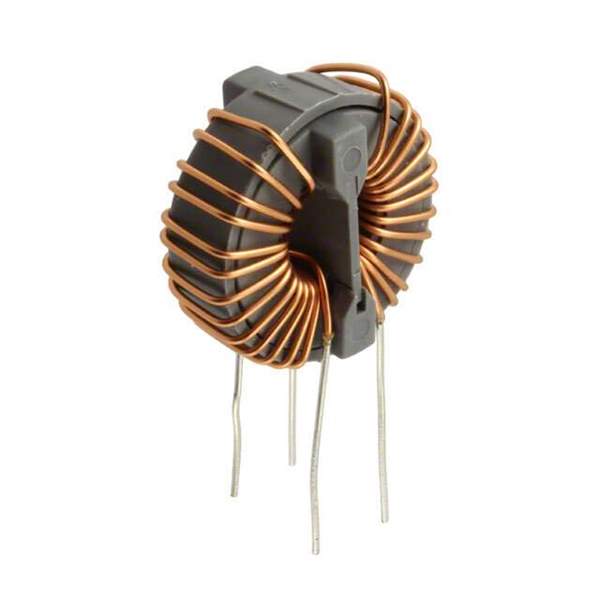

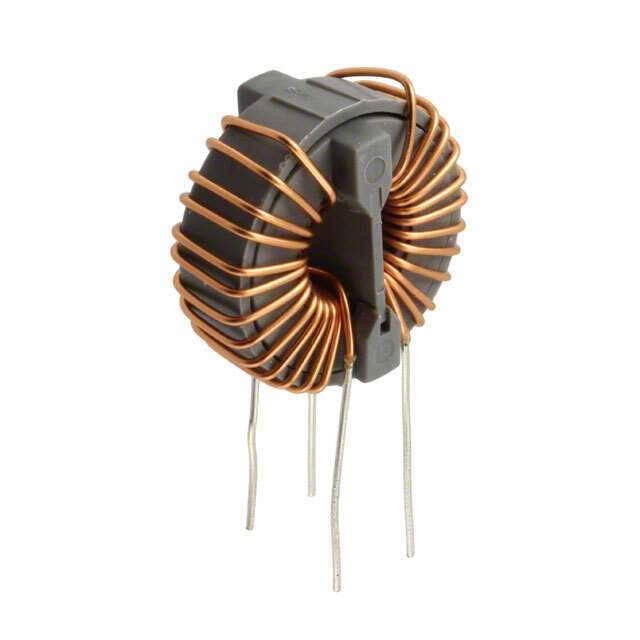

SC-03-D050 Real Image
Same model may have multiple batches, images only for reference.

SC-03-D050

Part No SC-03-D050
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 50 µH @ 100 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 40mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 0.906" Dia x 0.512" W (23.00mm x 13.00mm)
Height (Max) 0.906" (23.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-03
Other Names UALSC03D050000,399-10764
Standard Package 360
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277038-SC-03-D050
Ultra Librarian 3D Model Ultra Librarian SC-03-D050 CAD Model

Description

The Kemet SC-03-D050 is a common mode choke filter that is designed to be used in power line applications. It is manufactured by Kemet.

  • Voltage Rating: 250V AC and 250V DC
  • Current Rating: 3A
  • Filter Type: Power Line
  • Inductance: 50 µH @ 100 kHz
  • Mounting Type: Through-hole
  • Package/Case: Vertical, no base, 4 PC pin
  • Temperature Range: -25°C to 105°C
